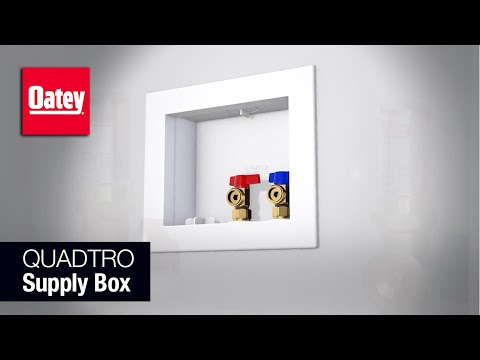

Quadtro, Washing Machine Outlet Box, With Pex Crimp, 1/4 Turn Valves, Patented, Versatile Design Allows For Right, Left, Or Center Drain & Bottom Or Top Mount Valves, Lock & Load Valve Mounting System For Quick & Easy Positioning, Single Lever Valve Mounting Hub Locks Into Position In Seconds, Unique, Easily Installed & Removed Test Cap That Does Not Fall Into Drain, A Singular Solution That Benefits Each Level Of The Supply Chain.
- Quadtro® residential and commercial washing machine outlet box
- 2 in. drain opening fits PVC or ABS Sch. 40 DWV pipe
- Easy-to-remove, tool-free 1/4-turn knockout
- Snap-on faceplate frame accommodates up to 1 in. drywall
- Box made of high impact polystyrene stands up to the roughest job site abuse
- Connects to PEX supply line with F1807 connection
- 4 support brackets included for easy top or bottom valve mounting
- Two proprietary lock and load 1/4-turn valves enable left, right or center positioning of the drain pipe
- Four openings accommodate: A hot water PEX-compatible valve, a cold water PEX-compatible valve, PVC or ABS Sch. 40 drain pipe for connection to your DWV system, and the option for top-down supply line installation
- Box Dimensions: 9.43 in. W x 9.61 in. H x 3.73 in. D; Box Opening Dimensions: 8-3/4 in. W x 7.26 in. H
- Faceplate Dimensions: 11.73 in. W x 10.19 in. H
