Eaton 125A 600V 4-Jaw 3-Wire Meter Socket
Model #UHTRS101BE UPC 00786685217734
561517
Tap to view
Product overview

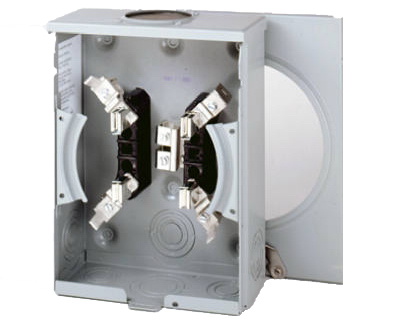

Professional, preferred quality meter socket for 125A continuous 600V, 3-wire, single phase service. Outdoor, ringless, 4-jaw, overhead or underground service design with ground wire connector and horn bypass. High-quality G90 steel, polyester-coated enclosure. Hub not included. 8.8 In. x 12.5 In. x 4.5 In. UL (Underwriter's Laboratories) listed.
- Professional, preferred quality
- High-quality G90 steel, polyester-coated enclosure
- Outdoor, ringless, 4-jaw, overhead or underground service design with ground wire connector and horn bypass
- UL listed
Specifications
| Amperage | 125 |
| Voltage | 600 |
| Enclosure Type | Single Meter Socket |
| Certification | UL Listed |
| Number Of Jaws | 4 |
| Dimensions | 8-4/5 In W x 12-1/2 In H x 4-1/2 In D |
| Width (In.) | 8.8 |
| Height (In.) | 12.5 |
| Depth (In.) | 4.5 |
| Brand | Eaton |
| UPC | 00786685217734 |
| Product type | Meter Socket |
