Prime-Line 8 In. Square Body Left-Hand Casement Window Operator
Model #H 3516 UPC 00049793035165
14921B
Tap to view
Product overview

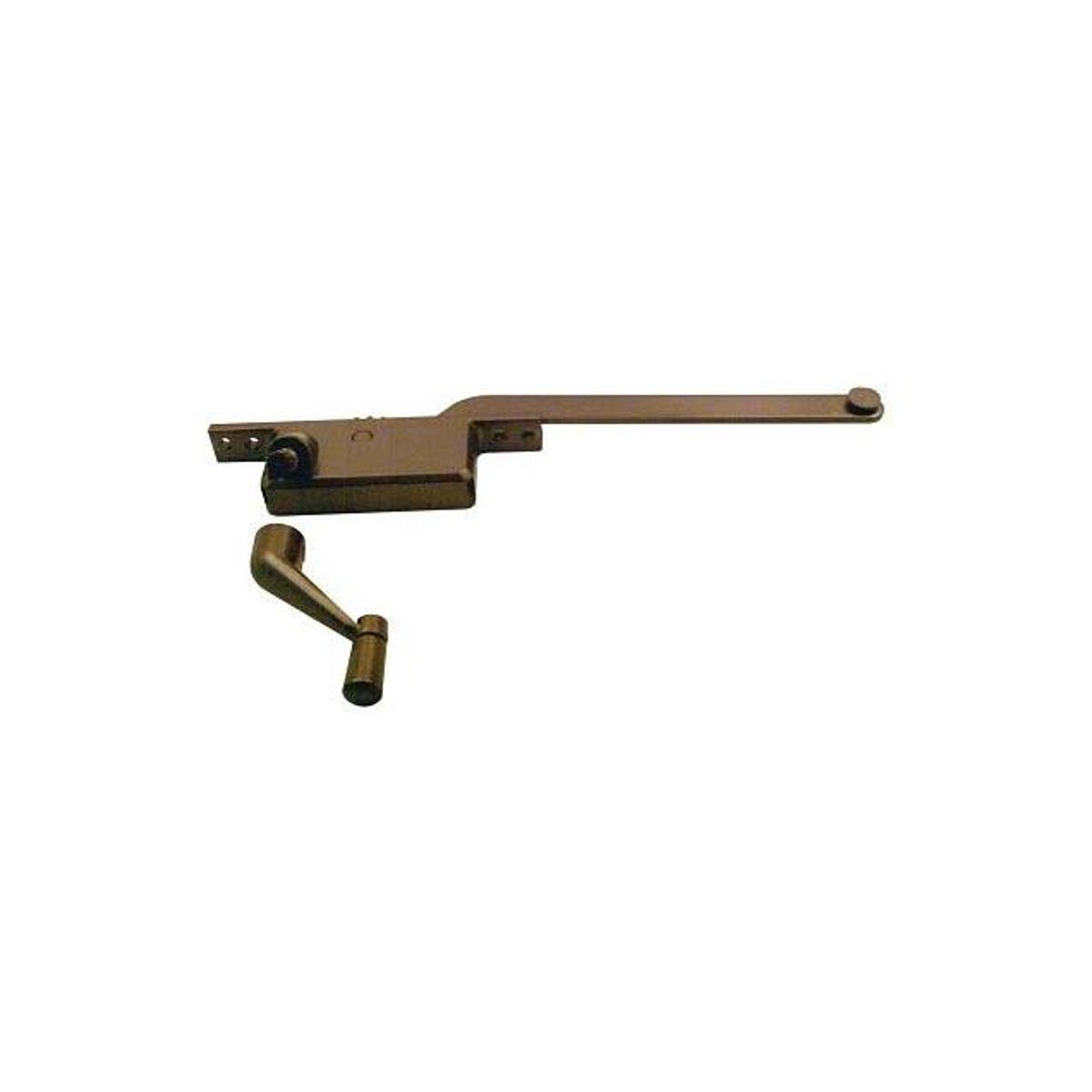

This casement window operator is a left-handed bronze square body type . It has a 8 in. steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 inch crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 in. and 4-3/4 in. on center.
- Left handed square body crank handle (viewed from inside looking out)

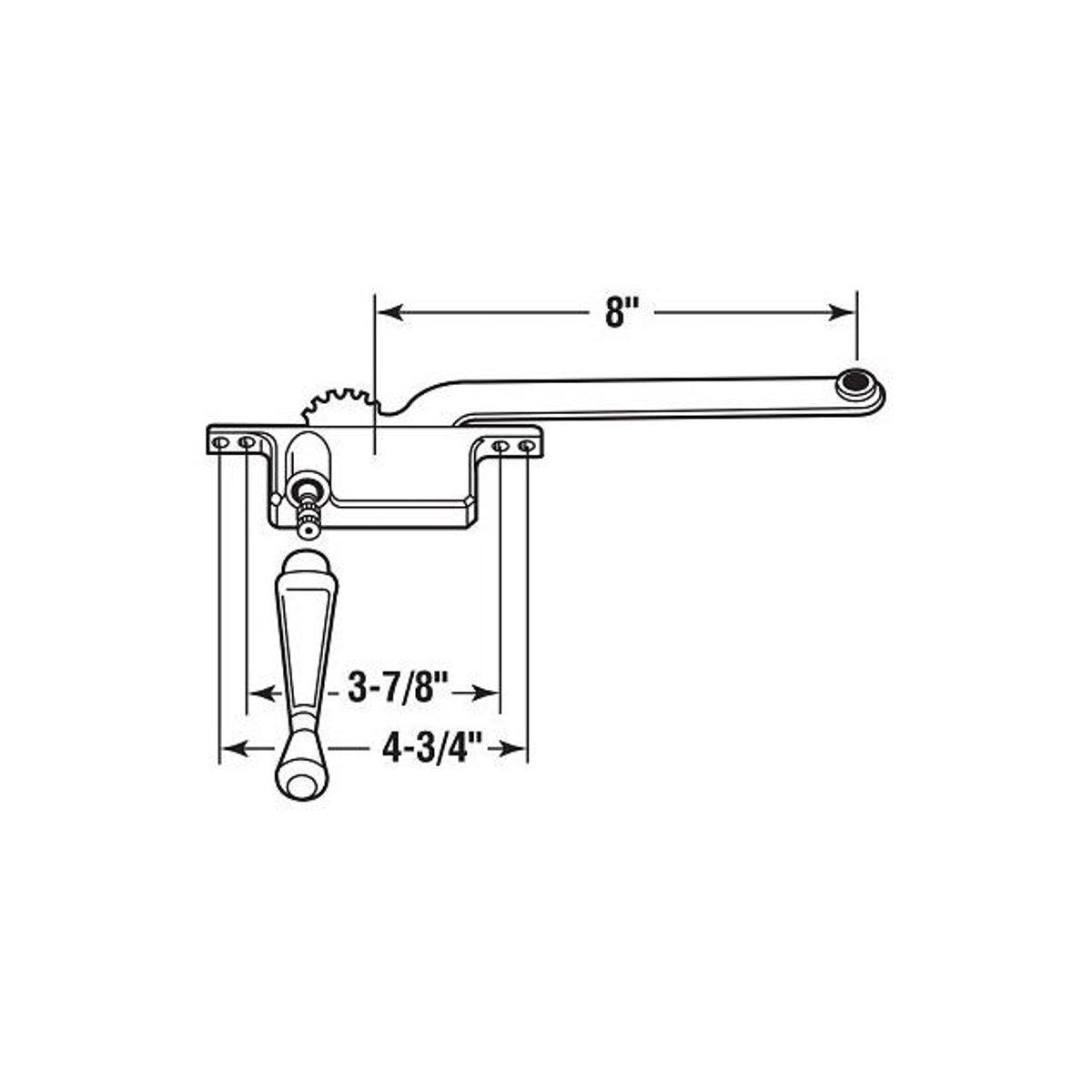

- Mounting holes are 3-7/8 in. and 4-3/4 in. on center
- Arm is 8 in. from middle of the guide button to the middle of the crank operator while closed
- Heavy duty diecast zinc construction with copper finish
Specifications
| Brand | PRIME-LINE |
| UPC | 00049793035165 |
| Product type | Casement Operator |
