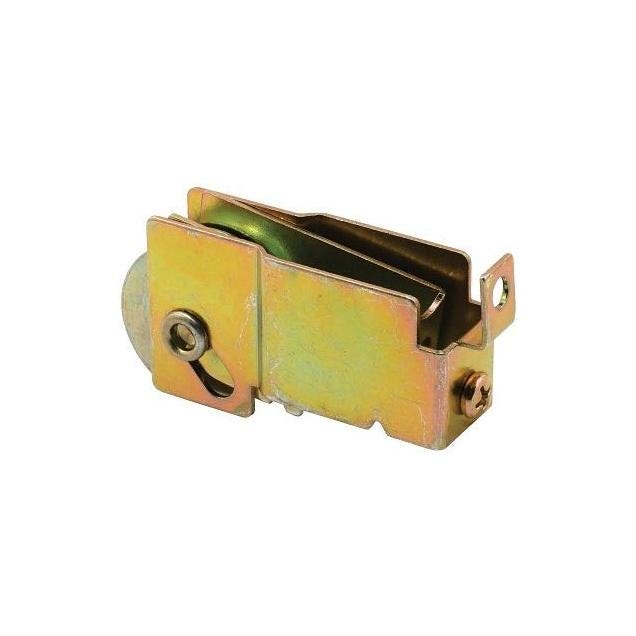

Prime-Line 1-1/4 In. Sliding Door Roller Assembly
Model #D 1515 UPC 00049793015150
K2DCPV
Tap to view
Product overview
This is an F-tab patio door roller assembly with a 1-1/4 In. concave steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 3/4 In. wide and 1-1/8 In. tall with a rear adjusting screw. Used by Christian Porter, Fullview and a variety of other patio door manufacturers.
- Used by Christian Porter, Fullview, and a variety of other patio door manufacturers
- When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
- 1-1/4 In. diameter ball bearing roller
- Stamped steel housing and steel roller
Specifications
| Brand | PRIME-LINE |
| UPC | 00049793015150 |
| Product type | Pocket Door Roller Assembly |
