Broan-NuTone 200 CFM 195 Sq. Ft. Coverage Area 8.5 Sones Wall Ventilator
Model #509S UPC 00026715022908
531703
Tap to view
Product overview

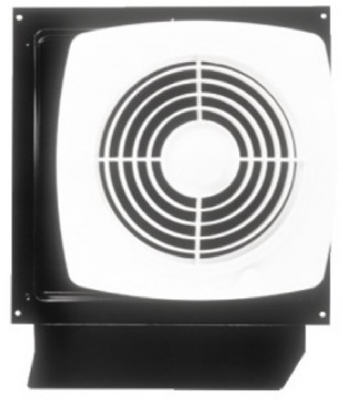

8 In. automatic wall fan features a permanently lubricated motor, steel housing, and polymeric fan blade. Built-in damper minimizes back-drafts. Built-in rotary on/off switch. 11-1/2 In. square white polymeric grille can be painted to match surrounding walls. Adjustable housing fits walls from 4-1/2 In. to 9-1/2 In. thick. 14-1/4 In. square outside flange. 180 CFM (cubic feet per minute). UL (Underwriter's Laboratories) listed.
- Permanently lubricated motor for continuous operation
- Rugged steel housing and polymeric fan blade
- Built-in damper minimizes back-drafts
- Built-in rotary on/off switch
- Polymeric grille can be painted to match surrounding walls
- Adjustable housing fits walls from 4-1/2 In. to 9-1/2 In. thick
Specifications
| Certification | UL Listed |
| Sound Rating | 8.5 Sone |
| Wall Thickness | 4.5 In. to 9.5 In. |
| CFM (cubic feet per minute) | 200 |
| Housing Diameter | 14-1/4 In. |
| Grill Diameter | 11-1/2 In. |
| CFM | 200 |
| Sound Rating (Sones) | 8.5 |
| Housing Width (In.) | 14.25 |
| Housing Width | 14.25 In. |
| Coverage Area (Sq. Ft.) | 195 |
| Brand | Broan-Nutone |
| UPC | 00026715022908 |
| Product type | Wall Ventilator |
