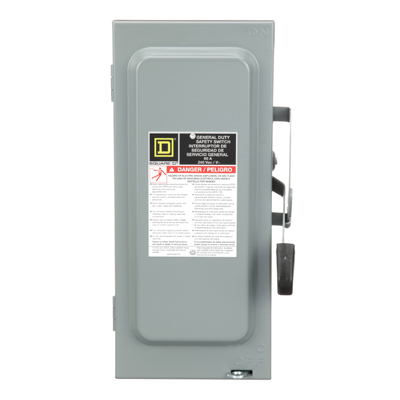

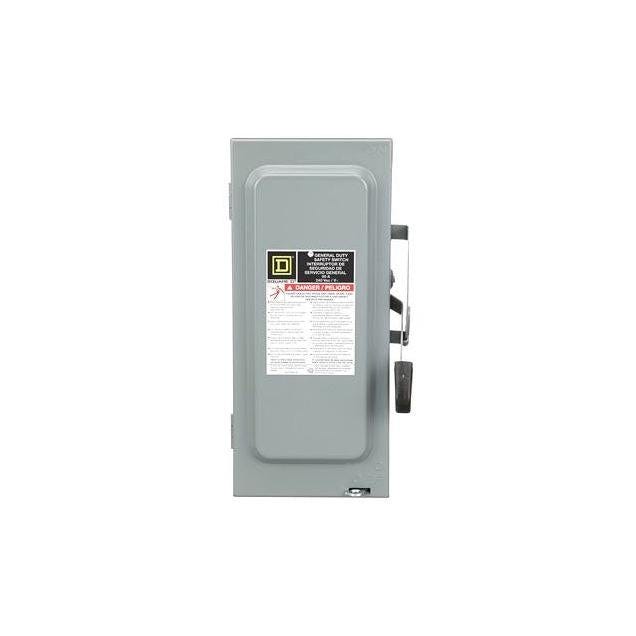

Square D 60A General-Duty Safety Switch
Model #D222NCP UPC 00047569521560
TM480D
Tap to view
Product overview
The Square D by Schneider Electric 60 Amp 240-Volt 14,000-Watt Fused General-Duty Safety Switch is a Class 3130, Series F unit with a NEMA Type 1 metallic enclosure for indoor use. The ANSI-certified and UL-listed safety switch is intended for use in general-duty applications. The switch is single phased, fused and 3 wire (2 blades and fuse holders and 1 neutral).
- For use as a safety switch in general-duty applications
- Class 3130, Series F
- NEMA Type 1 metallic enclosure for indoor use
- Fused
- Single phase
- 2-pole fusible (cartridge)
- 3 wire (2 blades and fuse holders and 1 neutral)
- Terminal lug data: one #10-3 Al or #14-3 Cu
- 3 HP and 240 VAC
- 100,000 SCCR maximum with proper current-limiting fusing
Specifications
| Brand | Square D |
| UPC | 00047569521560 |
| Product type | Safety Switch |
