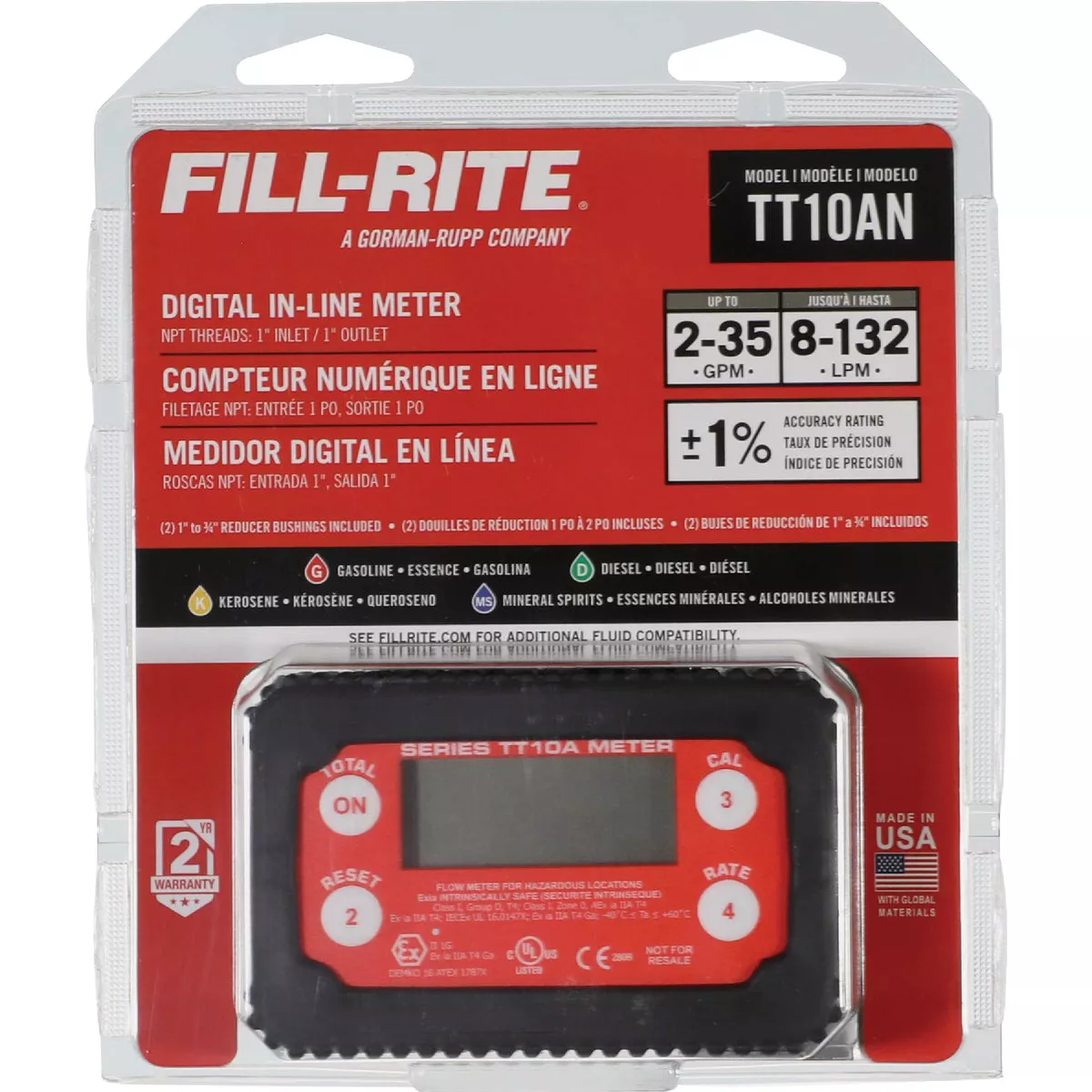

Fill-Rite Digital Meter-Fuel Transfer
Model #TT10AN UPC 00089404226285
595356
Tap to view
Product overview
4-digit fuel transfer meter is equipped with NPT threads and is designed to register 2 to 35 gallons per minute at +/-1% accuracy. This meter bundle includes (2) 0.75 In. reducer bushings. The digital fuel meter is extremely accurate, durable, and can be installed both in-line at the nozzle or mounted directly at the pump. Factory presets for use with 20 fluids and UL/ATEX listing on the entire meter.
- Aluminum housing
- Measures gallons, liters, quarts, pints, and ounces for versatility
- Compatible for use with gasoline, diesel, Jet fuel, Heptane, kerosene and mineral spirits
- 1 In. inlet and 1 In. outlet ports
- Operates efficiently in temperatures from -40 F to +176 F
- Intrinsically safe electronics and near global regulatory approvals provide peace-of-mind
- Rubber boot helps protect the meter and electronics from impact damage
- Replaceable AA batteries keep the meter running and downtime to a minimum
- 3.25 In. W. x 9 In. H. x 6.5 In. L.
Specifications
| Warranty | 2 Yr. |
| Pressure Rating | 50 psi |
| For Use With | 20 Fluids & UL/ATEX Listing |
| Flow Rate | 35 GPM |
| Brand | Fill-Rite |
| UPC | 00089404226285 |
| Product type | Flow Meter |
