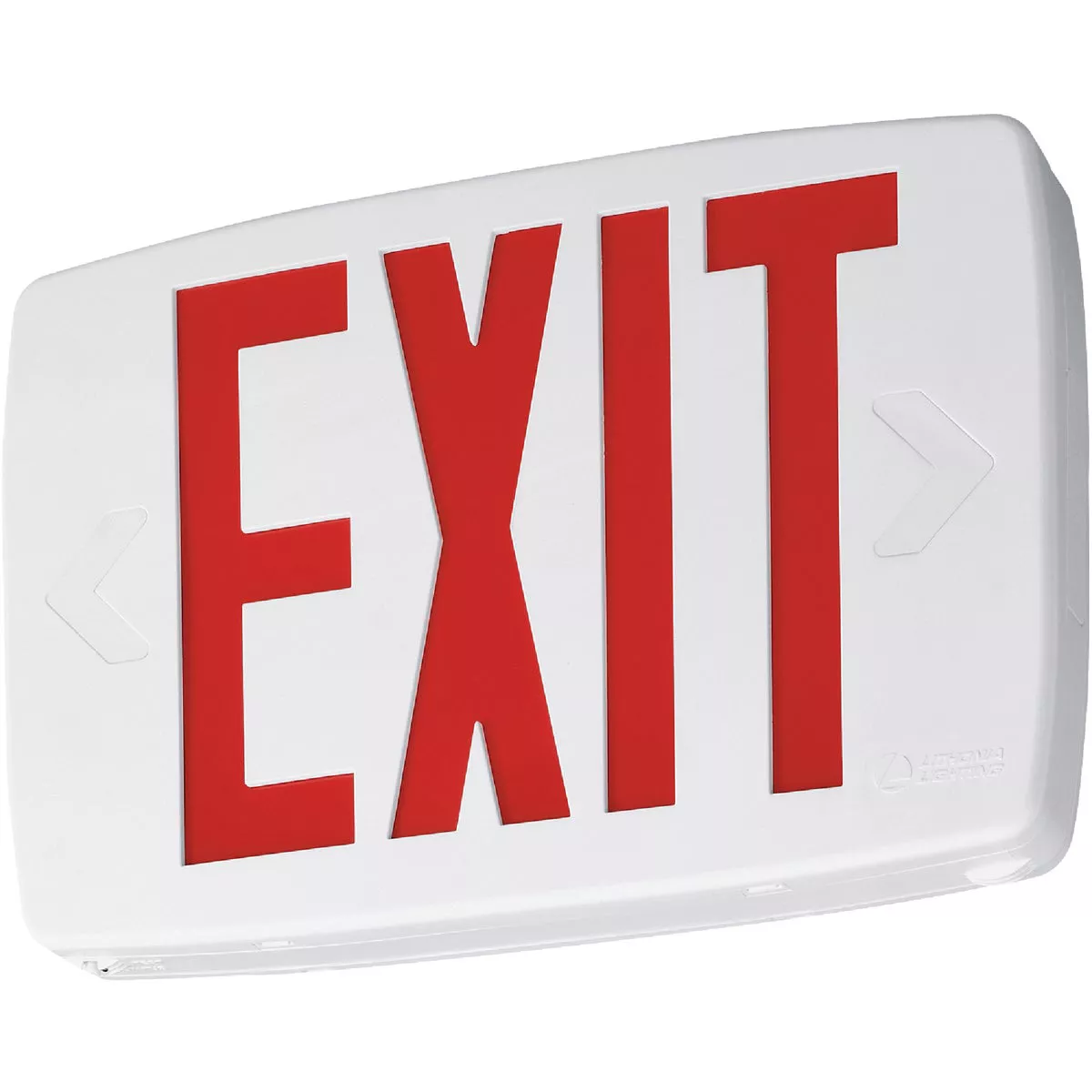

Lithonia Quantum Red Lettering Thermoplastic LED Exit Light
Model #LQMSW3R120/277
Item #559326
UPC
Tap to view
Product overview
Quantum LED (light emitting diode) Quick-Mount is ideal for applications requiring attractive, quick installation exit signs and low energy consumption. Precision-molded thermoplastic housing is impact and scratch-resistant, corrosion-proof, and ultra violet-stabilized to resist discoloration. Innovative snap-together design allows installation in less than 3 minutes. Faceplate and back cover are interchangeable on housing. Long-life LEDs are mounted on printed circuit boards, feature very low energy consumption (less than 1 watt), and have an average life of 10 years. Provides uniform illumination without shadows or hot spots and includes reinforced, impact-resistant color panels. Letters are 6 inches high with 3/4 inch stroke and a 100 foot viewing distance. Replaceable chevron direction indicator knockouts for choice of direction. Universal mounting capability - top, back, or end (canopy provided). 120/277 dual voltage. Red. UL (Underwriter's Laboratories) listed. 5-year limited warranty, including LED bulbs.
- Ideal for applications requiring attractive, quick installation exit signs and low energy consumption
- Ideal for applications requiring attractive, quick installation exit signs and low energy consumption
- Precision-molded thermoplastic housing is impact and scratch-resistant, corrosion-proof, and ultra violet-stabilized to resist discoloration
- Precision-molded thermoplastic housing is impact and scratch-resistant, corrosion-proof, and ultra violet-stabilized to resist discoloration
- Innovative snap-together design allows installation in less than 3 minutes
- Innovative snap-together design allows installation in less than 3 minutes
- Faceplate and back cover are interchangeable on housing
- Faceplate and back cover are interchangeable on housing
- Long-life LEDs are mounted on printed circuit boards, feature very low energy consumption (less than 1 watt), and have an average life of 10 years
- Long-life LEDs are mounted on printed circuit boards, feature very low energy consumption (less than 1 watt), and have an average life of 10 years
- Provides uniform illumination without shadows or hot spots and includes reinforced, impact-resistant color panels
- Provides uniform illumination without shadows or hot spots and includes reinforced, impact-resistant color panels
- UL Listed
- UL Listed
- 5-Year warranty
- 5 Yr. warranty
Specifications
| Voltage | 120/277 |
| Certification | UL Listed |
| Warranty | 5 Yr. |
| Weight | 2.6 Lb. |
| Dimensions | 7-5/8 In. H. x 11-3/4 In. L. x 2 In. D. |
| Bulbs Included | Yes |
| Connection Type | Hard-Wired |
| Emergency Run Time | 90 Min. |
| Brand | Lithonia |
| Product type | Exit Light |
