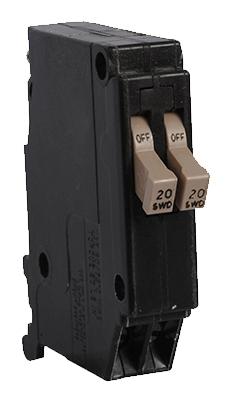

Eaton 20A/20A Twin Single-Pole Circuit Breaker
Model #CHT2020 UPC 00782113631547
540005
Tap to view
Product overview
Twin circuit breaker for use in CH type main lug only panels. Provides 2 single pole circuits in 1 space. 120 volt/240 volt, 10,000 AIC (amps interrupting capacity). UL (Underwriter's Laboratories) listed.
- Compatible with CH type main lug only panels
- Provides 2 single pole circuits in 1 space
- UL Listed
- 20/20, Twin
Specifications
| Amperage | 20/20 |
| Voltage | 120/240 |
| Number Of Poles | Twin |
| Mount Type | Plug-In |
| Wire Size | #14-8 AWG |
| Certification | UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 1-Space |
| Width (In.) | 0.75 |
| Brand | Eaton |
| UPC | 00782113631547 |
| Product type | Circuit Breaker |
