Leviton Decora White 900 Sq. Ft. Coverage 180 Deg. Detection Occupancy Sensor Switch

Model #R02-DOS05-1LW
Item #530299
UPC 00078477578872
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

    Lower electrical costs and add convenience to everyday living by replacing a standard switch with a Leviton Decora Motion Sensor Light Switch. With a 180-degree field of view and 900 square feet of coverage, the switch uses passive infrared technology to monitor a spaceautomatically turning lights on when you enter and off when you leave. It is a simple, cost-effective way to automate lighting in your home. Shallow, compact design fits easily into standard wall boxes. Single pole or 3-way when used with a 3-way switch. User-friendly customization lets you adjust time-out duration, sensitivity, and ambient light settingsno tools required and no need to remove the wallplate or faceplate. Ideal for rooms where you frequently enter and exit with your hands full, such as laundry rooms, basements, storage areas, pantries, and garages. 1/4 horsepower. Can be used to comply with 2019 & 2022 California Title 24, Part 6 Vacancy Control Device Requirements.
    • Automatic On/Off operation
    • Can be set to vacancy (manual-on) mode

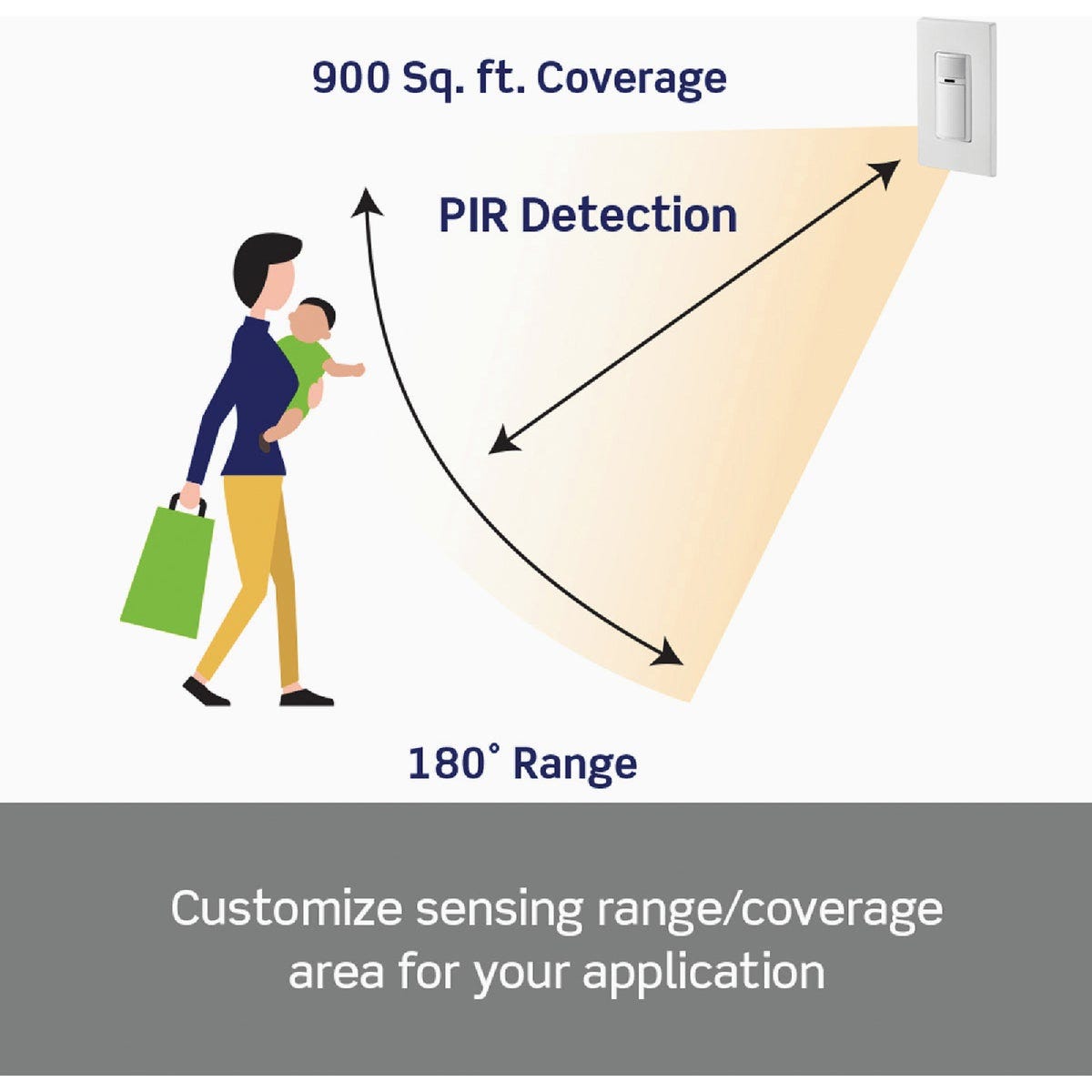

    • Provides 180 Deg. field-of-view, 900 Sq. Ft. of coverage

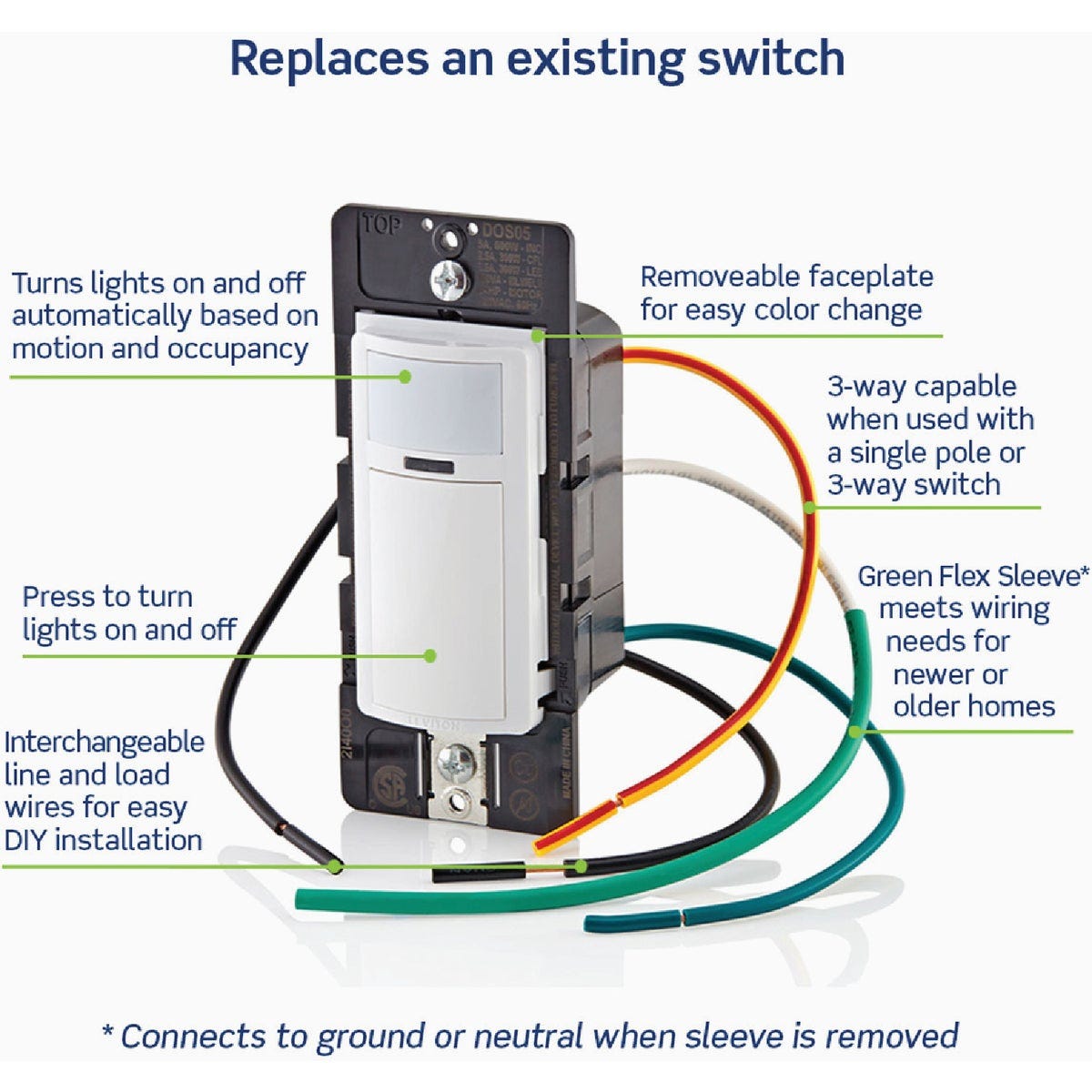

    • Green Flex Sleeve connects to ground when no neutral wire is present, or to neutral when available

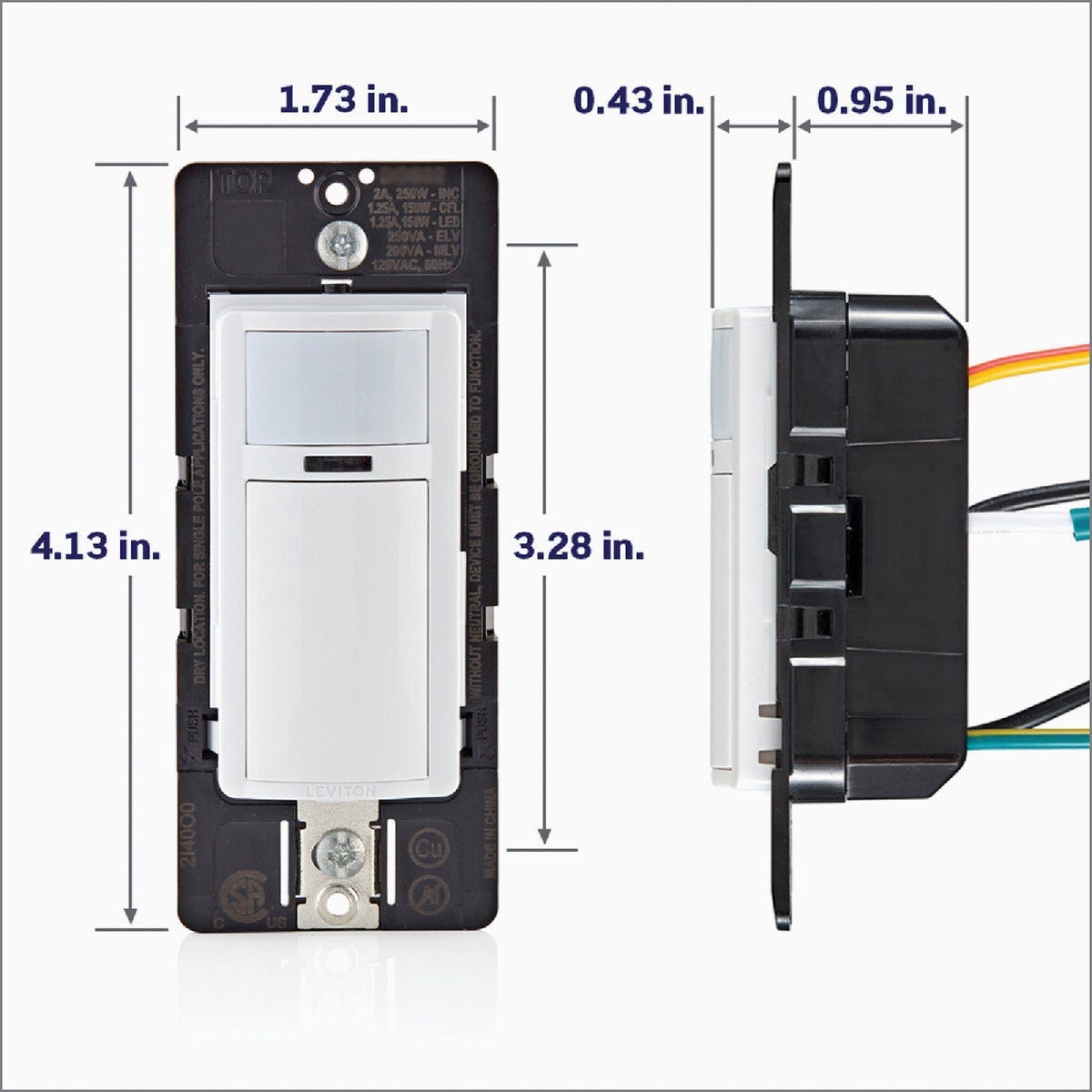

    • Shallow design easily fits in the wallbox and can replace single pole switch

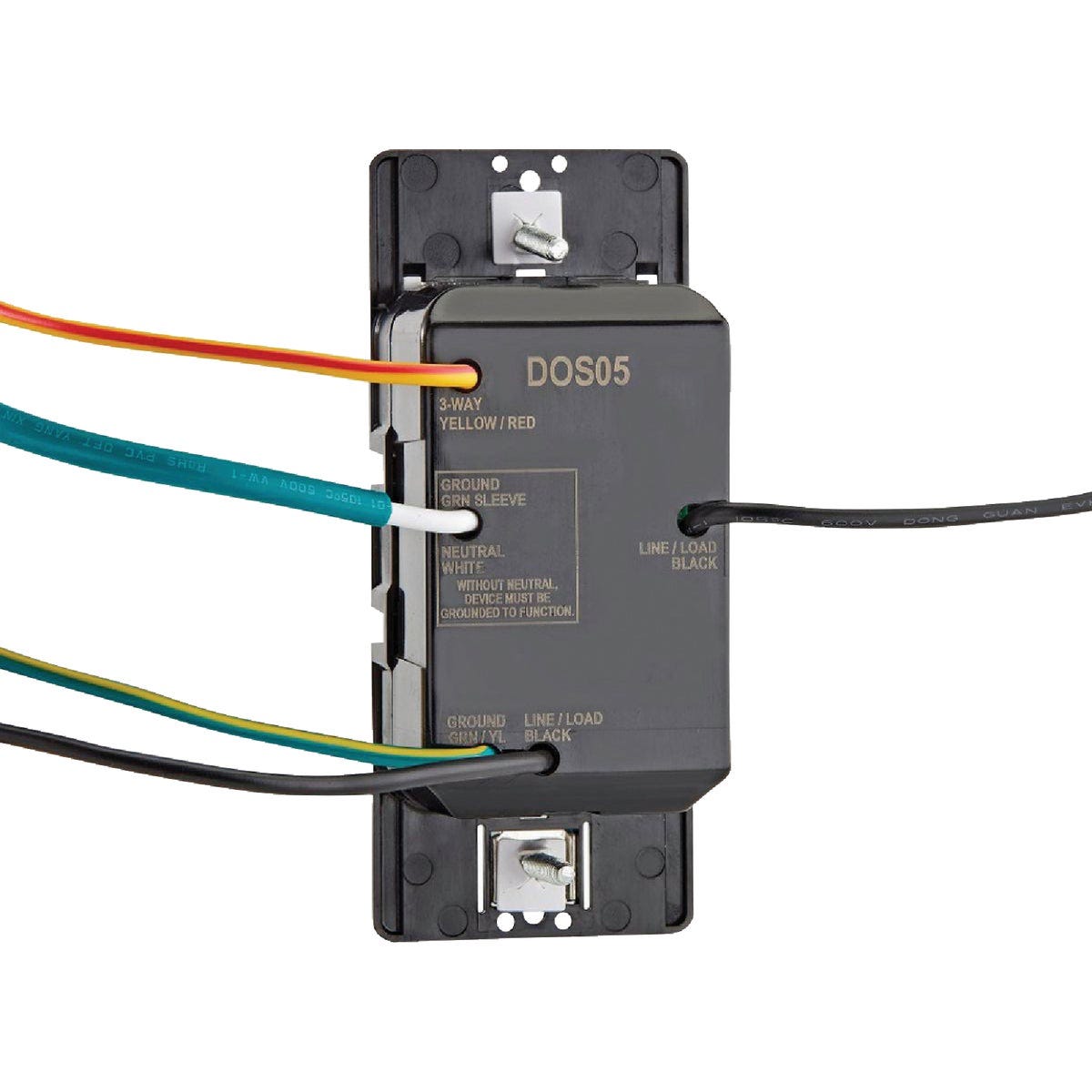

    • DIY-friendly, with two black wires that can be interchanged between line and load to help prevent miswiring
    • Leaded terminals for easier installation
    • Single pole or 3-way when used with a single pole or 3-way switch

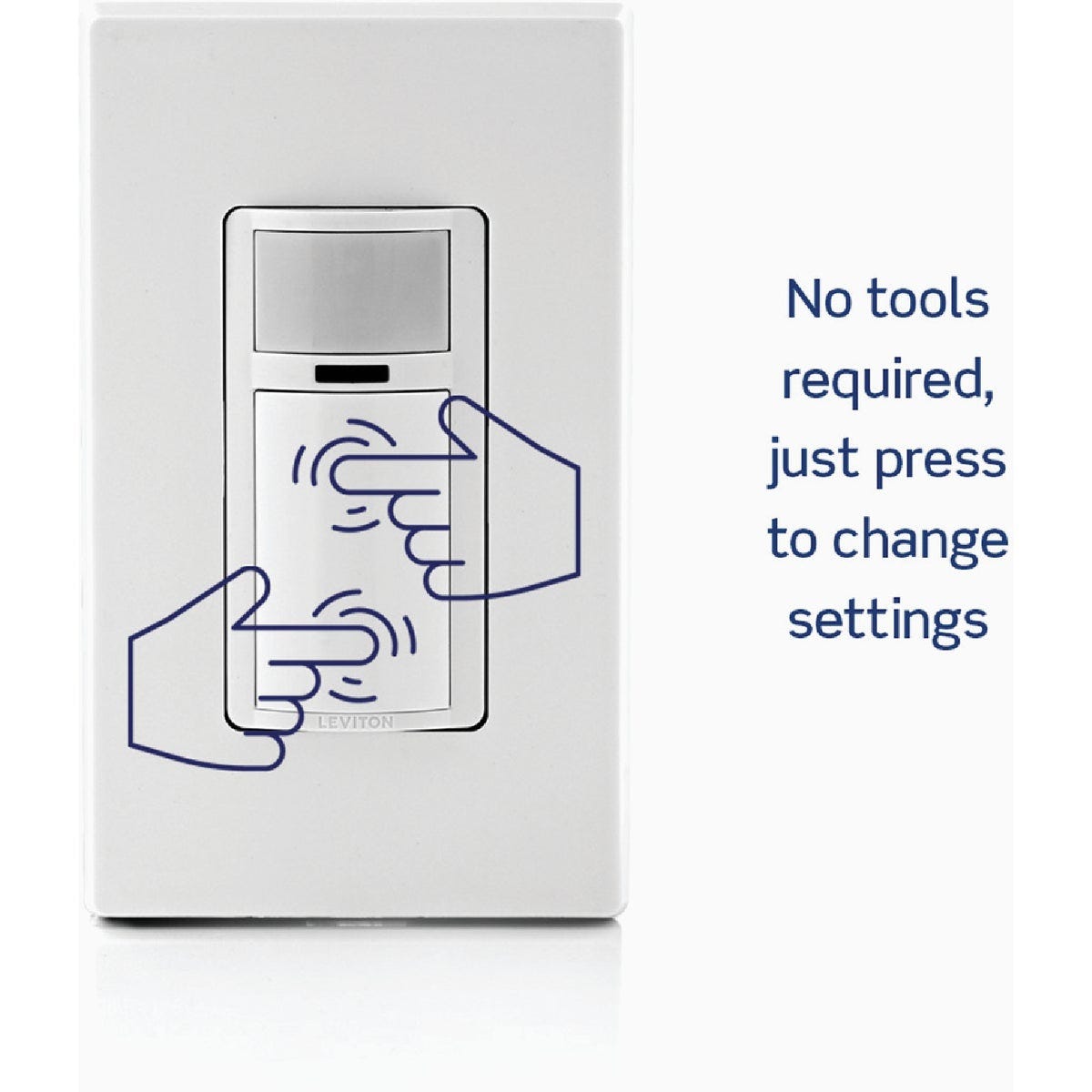

    • Program settings without removing the wallplate or faceplate
    • Low profile design blends in with walls for a discreet appearance
    • Ambient light override prevents sensor from switching the lights ON when there is ample natural light
    • Adjustable delayed OFF time which can be set for 1, 5, 10, or 20 minutes
    • Convenient push-button provides Manual OFF light switching at any time
    ColorWHITE
    Voltage120 AC
    Number of PolesSingle or 3-Way
    GradeResidential
    CertificationTitle 24 Compliant/UL Listed
    Field of Detection180 Deg.
    Power Rating300W LED, 600W Incandescent/Halogen
    Time AdjustmentYes
    Coverage Area (Sq. Ft.)900
    BrandLeviton
    UPC00078477578872
    Product typeOccupancy Sensor Switch
