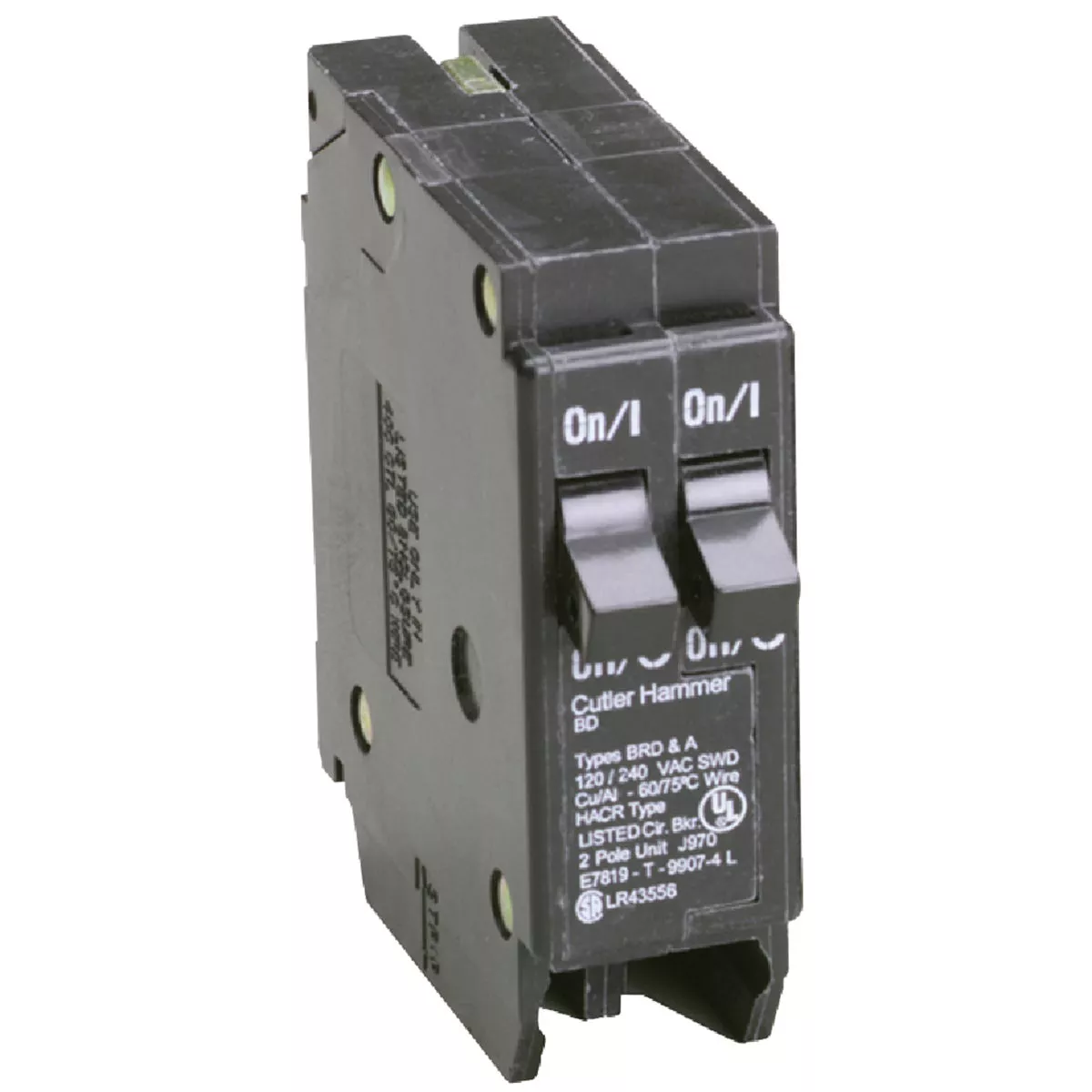

Eaton BD 20A/20A Double-Pole Standard Trip Duplex Circuit Breaker
Model #BD2020 UPC 00786676369251
518871
Tap to view
Product overview
BD duplex circuit breaker for use in load centers with notched bus bars. Allows the use of 2 single pole breakers in 1 space. They are not interchangeable with any other type of breaker. 120 volt/240 volt. For use in BR series panels. UL (Underwriter's Laboratories) listed.
- Compatible with load centers with notched bus bars
- Allows the use of 2 single pole breakers in 1 space
- UL Listed
- 20/20, 2
Specifications
| Amperage | 20/20 |
| Voltage | 120/240 |
| Number Of Poles | 2 |
| Mount Type | Plug-In |
| Wire Size | #14-4 AWG |
| Certification | UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 1-Space |
| Width (In.) | 1 |
| Brand | Eaton |
| UPC | 00786676369251 |
| Product type | Circuit Breaker |
