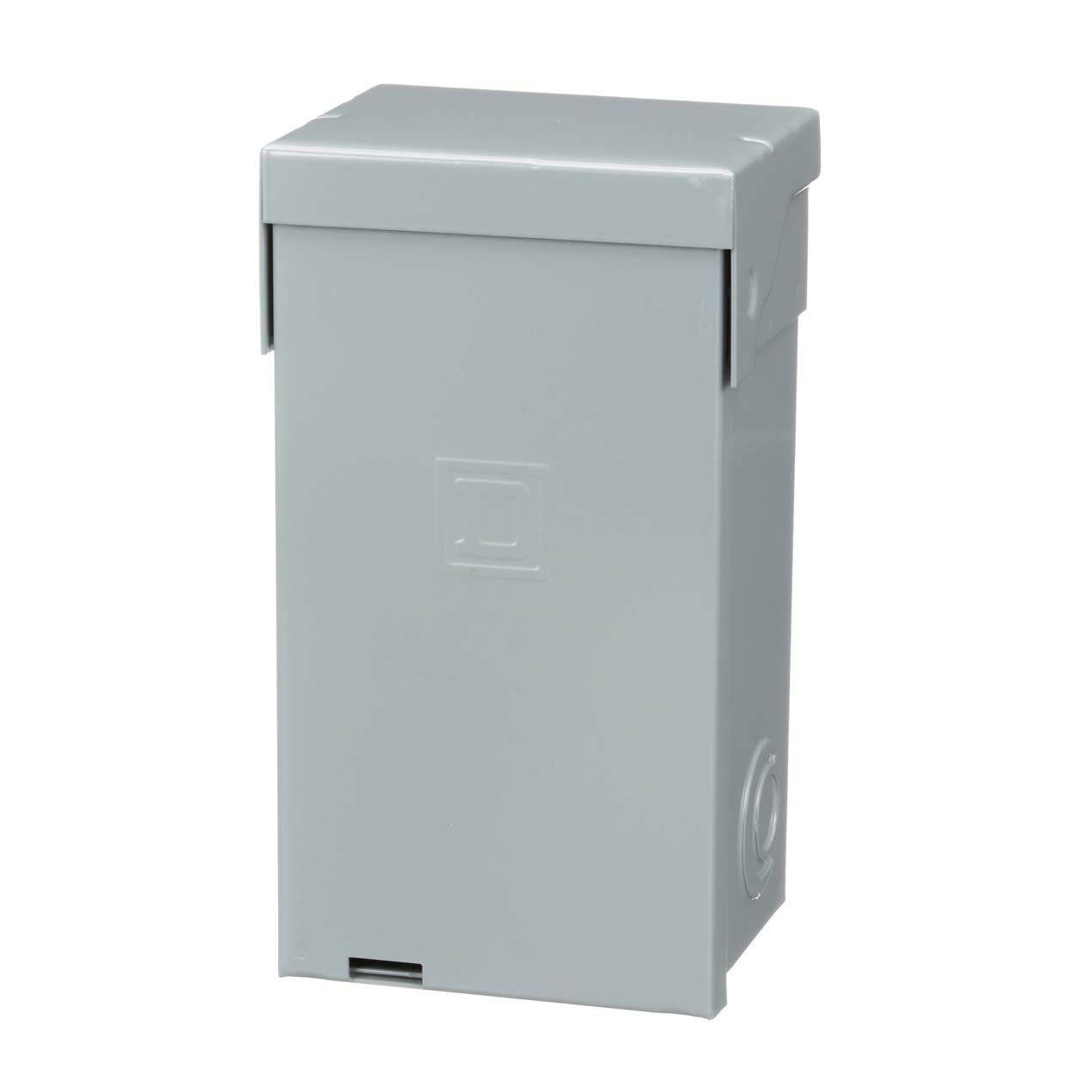

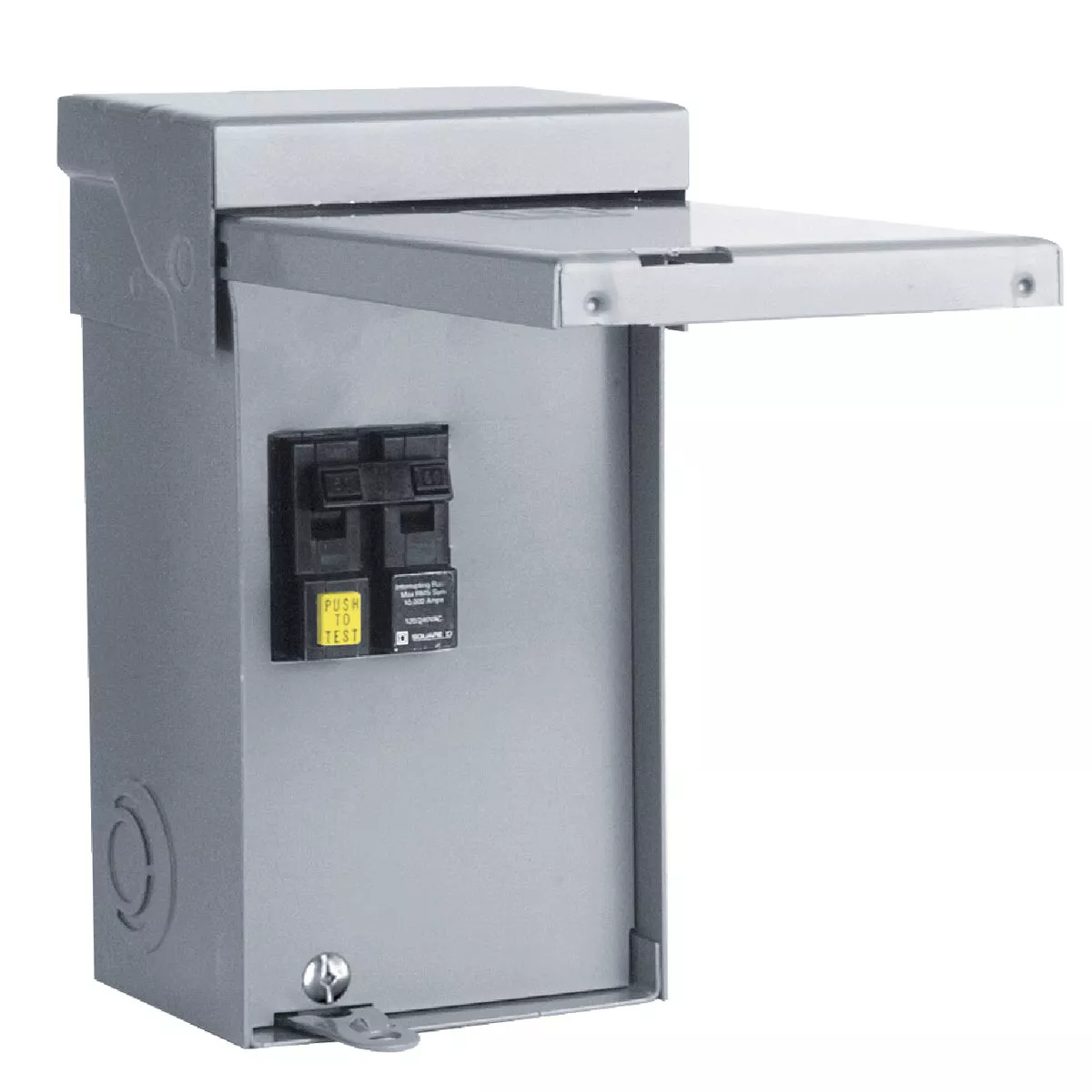

Square D Homeline 50A 2-Space 2-Circuit Outdoor Spa Panel Main Lug Load Center
Model #HOME250SPA UPC 00785901230540
502548
Tap to view
Product overview
Square D Homeline 2-space, 4-circuit spa pack load center. Protects single pole and double pole loads against ground and overcurrent faults. Provides protection for outdoor circuits such as hot tubs, fountains, swimming pools, or spas. Engineered for fast installation and wire savings. Includes (1) 50 amp Homeline outdoor metallic load center with an installed HOM250GFI.
- Protects single pole and double pole loads against ground and overcurrent faults
- Provides protection for outdoor circuits such as hot tubs, fountains, swimming pools, or spas
- Engineered for fast installation and wire savings
- Includes (1) 50A Homeline outdoor metallic load center with an installed HOM250GFI
- UL listed
Specifications
| Amperage | 50 |
| Voltage | 120/240 |
| Series | Homeline |
| Number of Spaces | 2 |
| Enclosure Type | Outdoor |
| Mount Type | Surface |
| Phase | Single |
| Wire Size | #8-2 (Aluminum), #8-2 (Copper) |
| Certification | UL Listed |
| Max Number of Circuits | 2 |
| Brand | Square D |
| UPC | 00785901230540 |
| Product type | Load Center |
