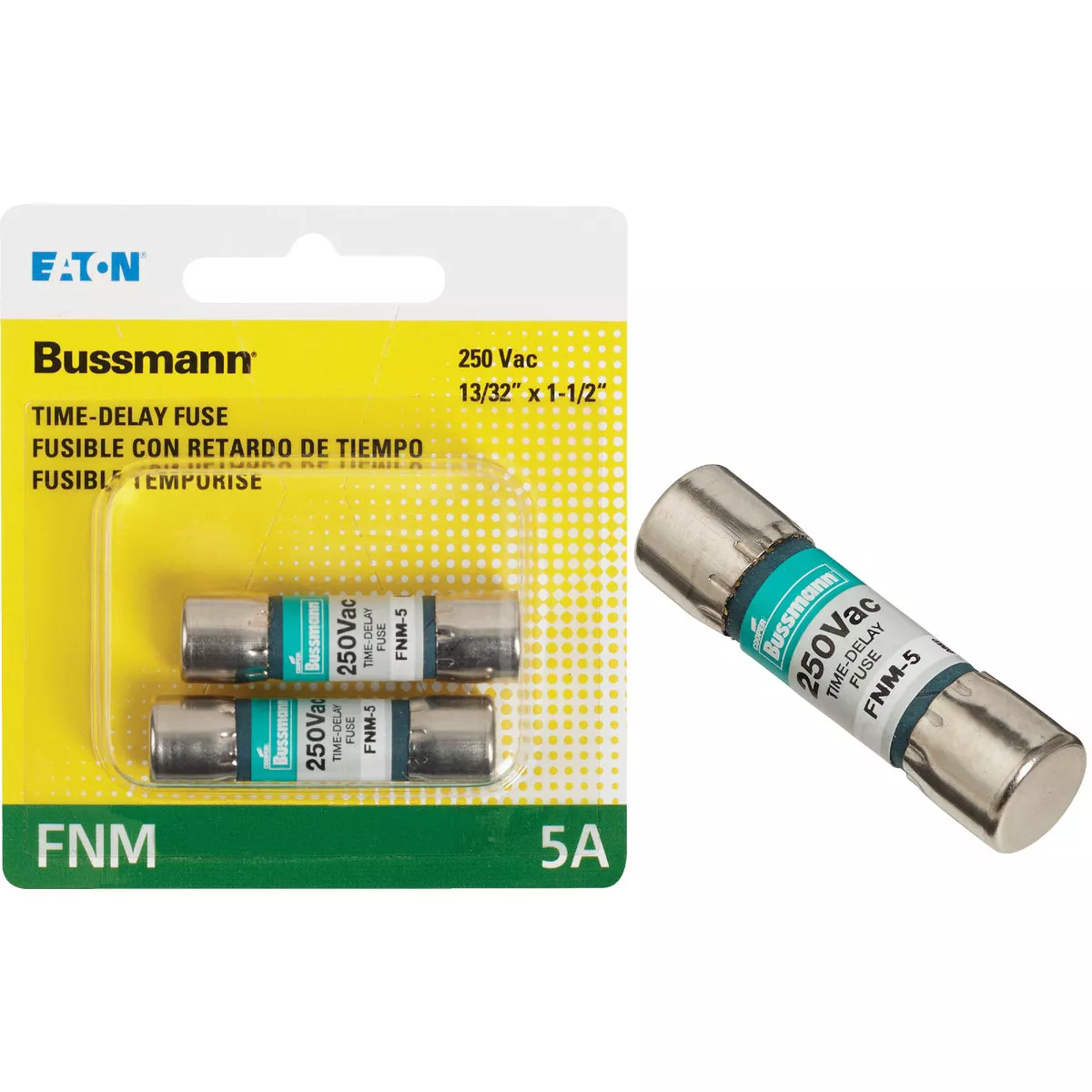

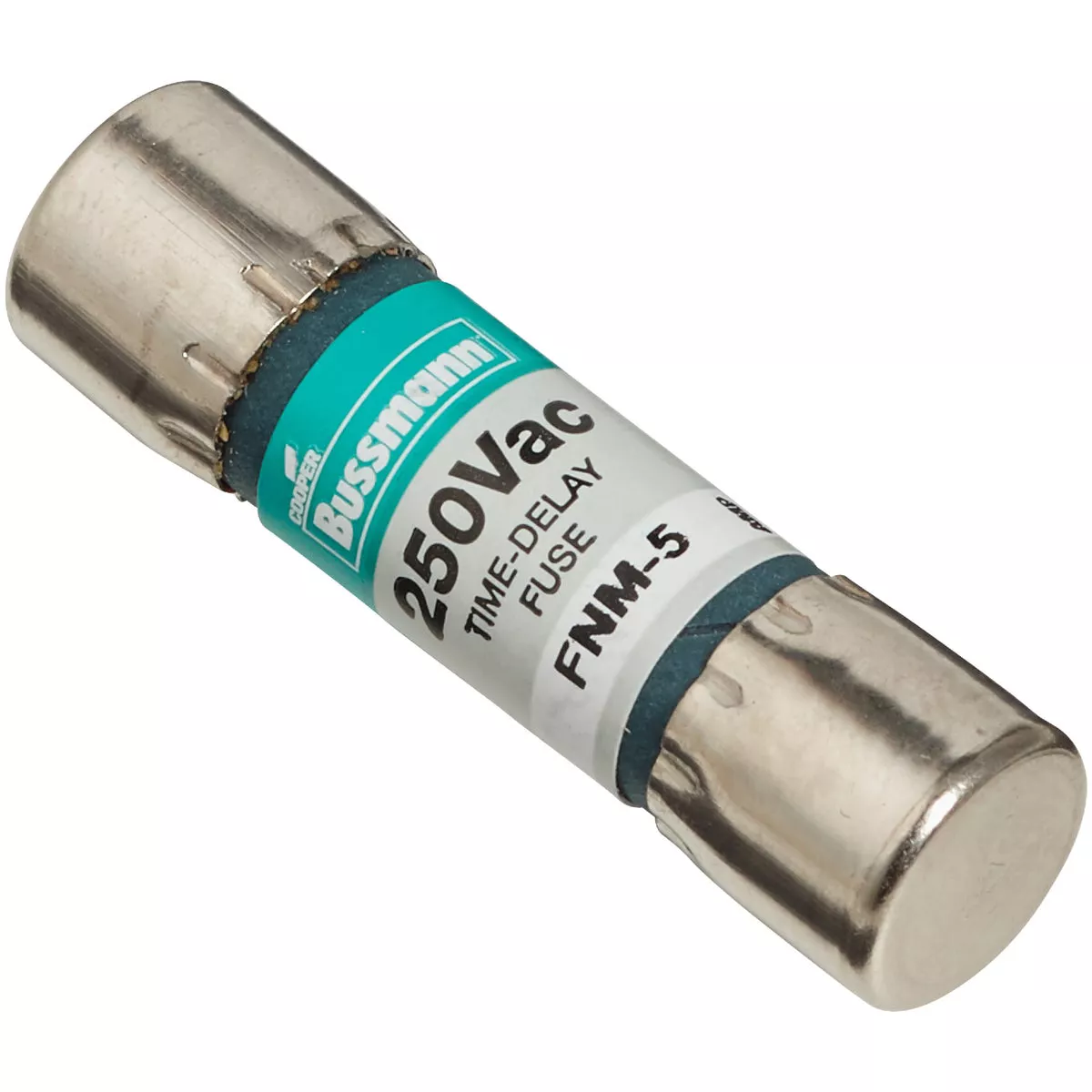

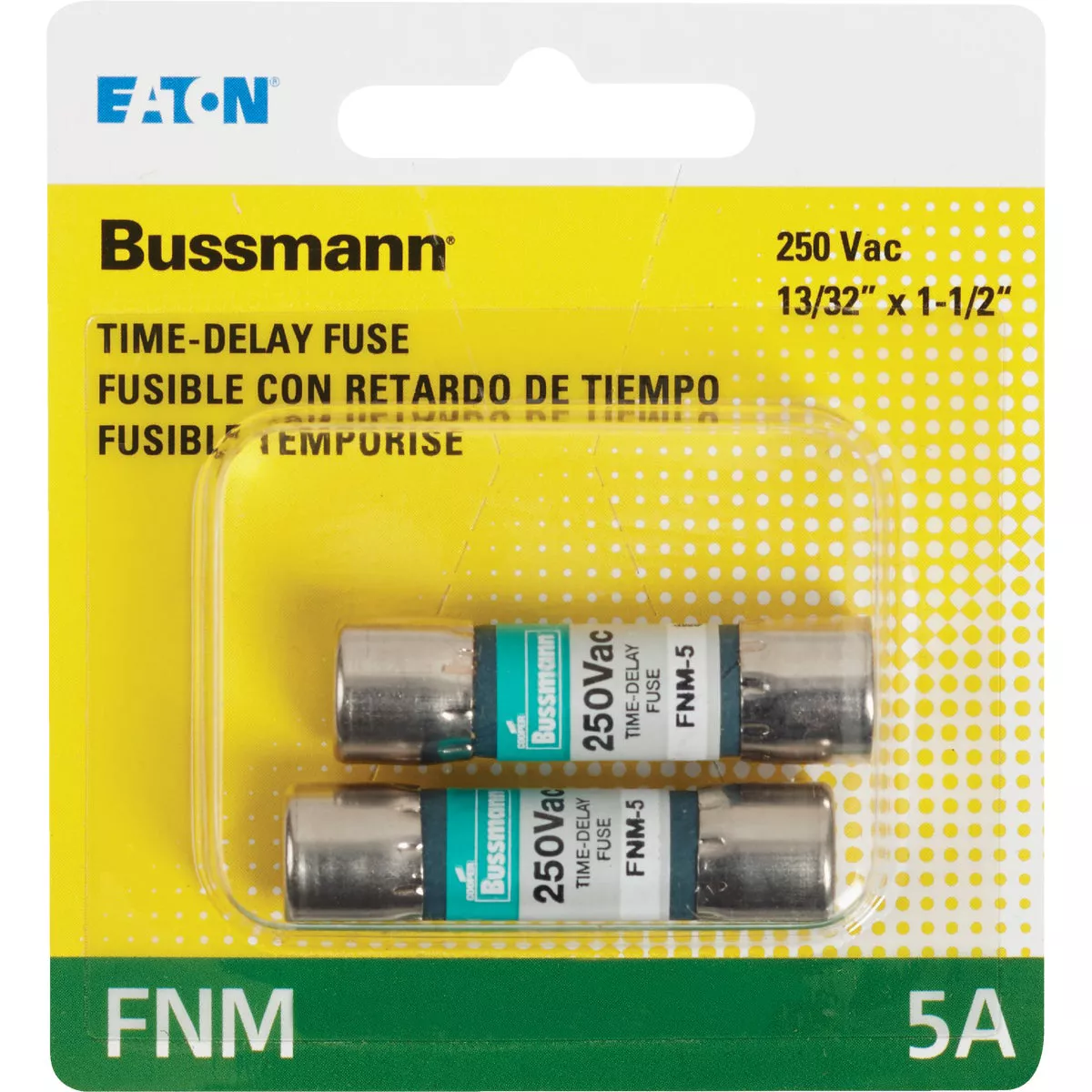

Bussmann 5A Fusetron FNM Cartridge General Purpose Time Delay Cartridge Fuse (2-Pack)
Model #BP/FNM-5 UPC 00051712751674
500804
Tap to view
Product overview
Fusetron time delay general-purpose FNM cartridge fuse. Suitable for circuits with high inrush current such as: spas, pool pumps, and other commercial equipment. Time delay feature allows the initial start up surge for typical motors to pass, but opens prior to burnout when longer dangerous overloads are present. UL (Underwriter's Laboratories) listed.
- Time delay allows the initial start up surge for typical motors to pass, but opens prior to burnout when longer dangerous overloads are present
- Suitable for circuits with high inrush current such as: spas, pool pumps, and other commercial equipment
- 5, 250
- UL Listed
Specifications
| Amperage | 5 |
| Voltage | 250 |
| Certification | UL Listed |
| Fuse Type | Fusetron FNM Cartridge |
| Fuse Function | General Purpose Time Delay |
| Class | CC |
| Length (In.) | 1.5 |
| Diameter (In.) | 0.40625 |
| Brand | Bussmann |
| UPC | 00051712751674 |
| Product type | Cartridge Fuse |
