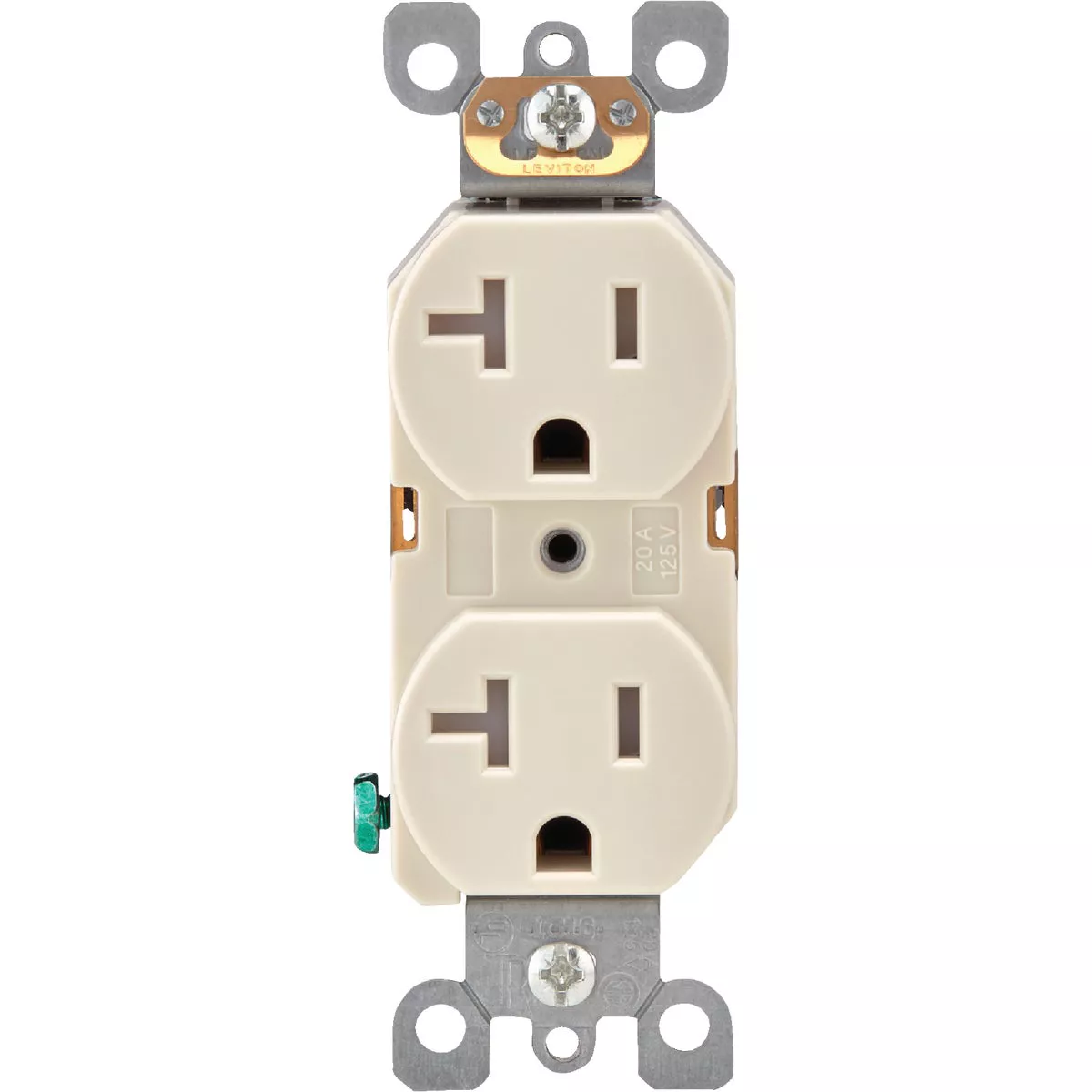

Leviton 20A Light Almond Tamper Resistant Residential Grade 5-20R Duplex Outlet
Model #R56-T5820-0TS
Item #500621
UPC 00078477466735
Tap to view
Product overview
Residential grade tamper resistant thermoplastic duplex grounding receptacle. Shutter mechanism inside the receptacle blocks access to the contacts unless a 2-prong plug is inserted, ensuring objects such as hairpins and keys will be locked out. Features a narrow body, side wired, and large head terminal screws that accept up to No. 10 copper wire. Triple wire power contacts for maximum conductivity and plug retention, captive mounting screws for fast installation. Convenient washer-type break-off plaster ears for best flush alignment and break-off tabs for easy 2-circuit conversion. Includes heavy-gauge rust-resistant steel mounting strap. Limited 2-year warranty.
- Tamper resistant, thermoplastic construction
- Shutter mechanism inside the receptacle blocks access to the contacts unless a 2-prong plug is inserted, ensuring objects such as hairpins and keys will be locked out
- Narrow body, side wired, and large head terminal screws that accept up to No. 10 copper wire
- Triple wire power contacts for maximum conductivity and plug retention, captive mounting screws for fast installation
- Convenient washer-type break-off plaster ears for best flush alignment and break-off tabs for easy 2-circuit conversion
- Includes heavy-gauge rust-resistant steel mounting strap
- Limited 2-year warranty
- UL Listed
Specifications
| Color | Light Almond |
| Amperage | 20 |
| Voltage | 125 |
| Number Of Poles | 2 |
| Grade | Residential |
| Certification | UL Listed |

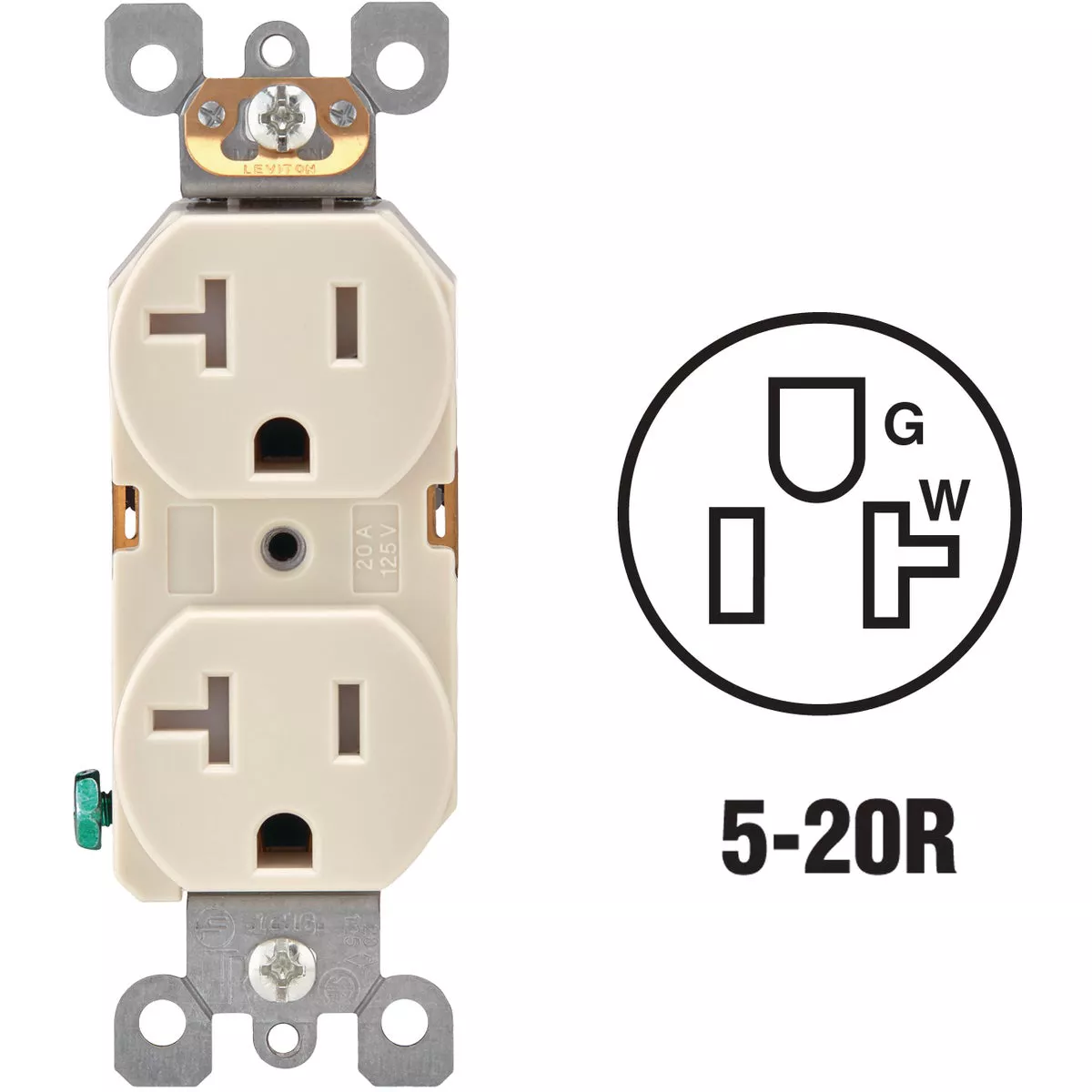

| NEMA Configuration | 5-20R |
| Number Of Wires | 3 |
| Brand | Leviton |
| UPC | 00078477466735 |
| Product type | Duplex Outlet |
