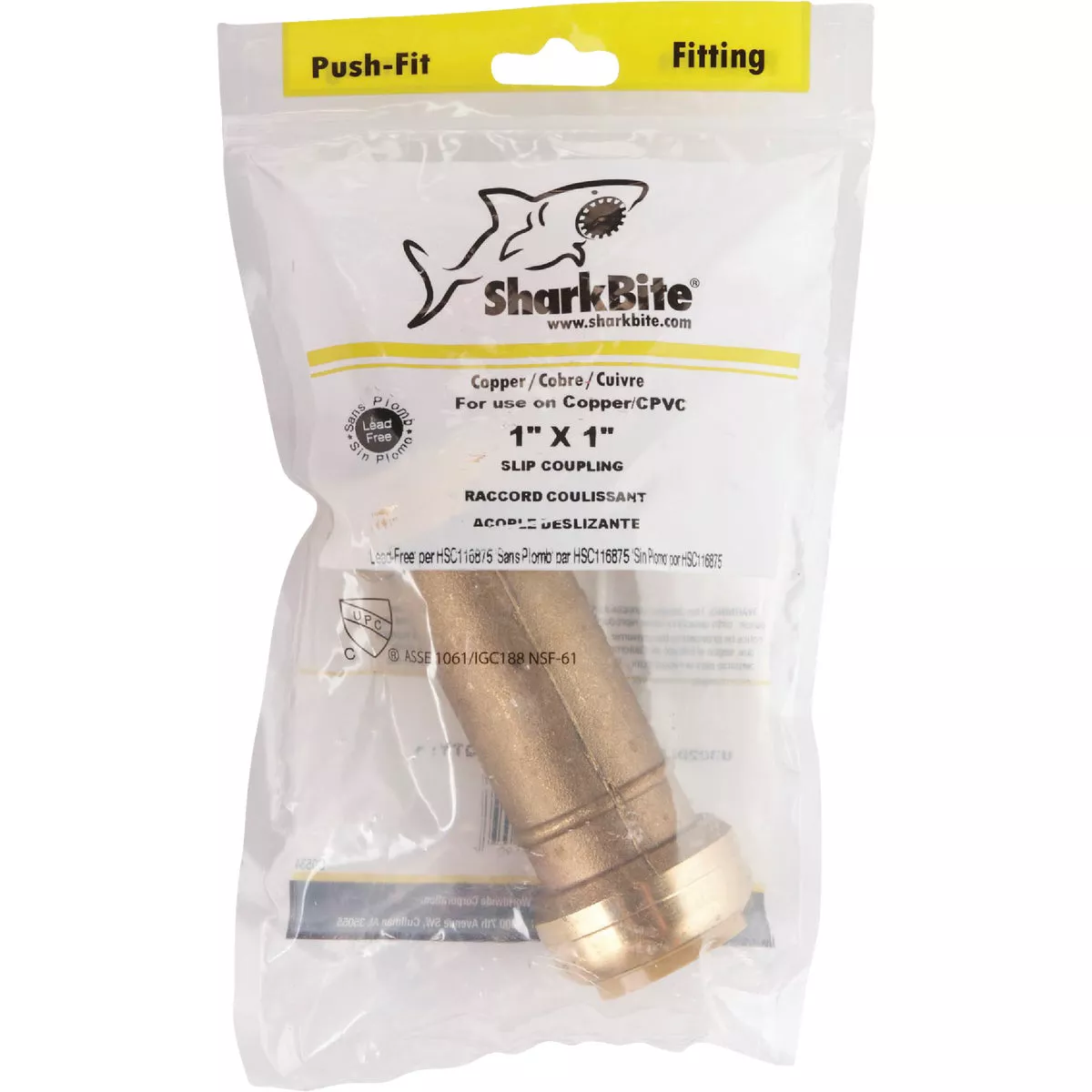

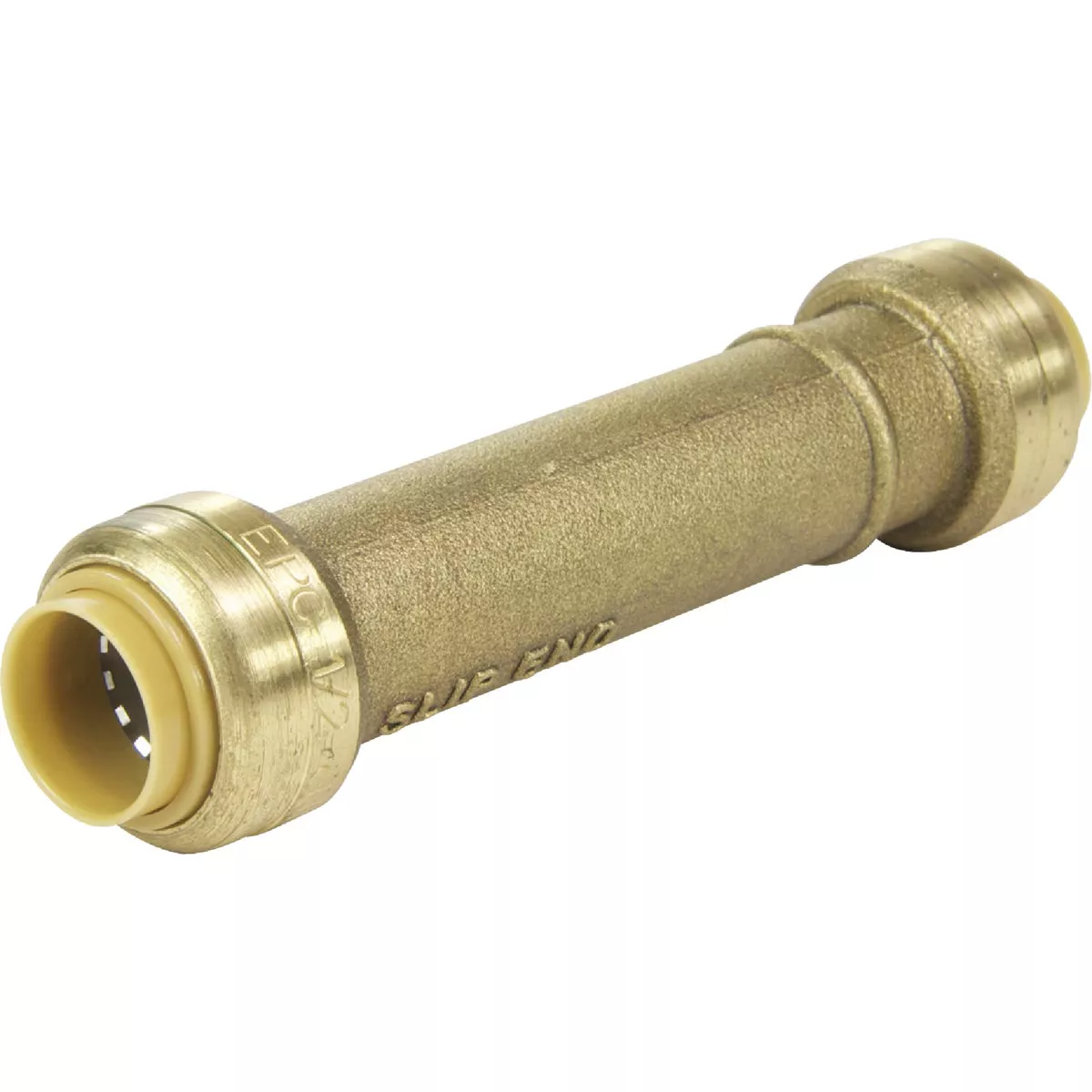

SharkBite 1 In. Push-to-Connect Brass Repair Coupling

Model #UR3020A
461912
UPC 00697285075900
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

    SharkBite Max push-to-connect fittings allow you make pipe connections with half the insertion effort while withstanding double the burst pressure. Featuring a newly designed stainless-steel retainer, SharkBite Max delivers additional strength and durability while providing a 250 psi pressure rating. Slip couplings are the most efficient way to repair a burst pipe or leak. A slip fitting does the job of two couplings and extra pipe. Only one end of the coupling has a stop, allowing the opposite end to slide freely over the end of a pipe. The fittings are then released using a disconnect tool and slide back onto the other end of the pipe for a successful connection and leak repair. Disconnected Clip is included with the fitting. UPC, IAPMO, and NSF-61 certified and approved. The fitting should be used with copper only and is rated at 200 F, 250 psi. It is made of 1-piece DZR brass. Fittings can be buried and placed behind drywall. Fittings are removable and reuseable. Product is individually bagged. Manufactured to include no more than 0.25% weighted average lead content on wetted surfaces. Third-party listed, compliant with applicable U.S. and Canadian plumbing codes. 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. Five-year warranty when properly installed with HDPE SDR-9. Patented technology.
    • Half the insertion effort, double the pressure rating
    • Can be installed on wet lines and pressure tested immediately
    • Stainless steel retainer adds strength and durability
    • High-performance DZR lead-free brass body
    • No special tools, crimping, soldering or glue required
    Fitting Size 11 In.
    Fitting Size 21 In.
    Connection Type 1Push
    Connection Type 2Push
    MaterialBrass
    Pressure Rating (psi)200
    Maximum Working Temperature (F)200
    Fitting TypeCoupling
    BrandSHARKBITE
    UPC00697285075900
    Product typeBrass Coupling
