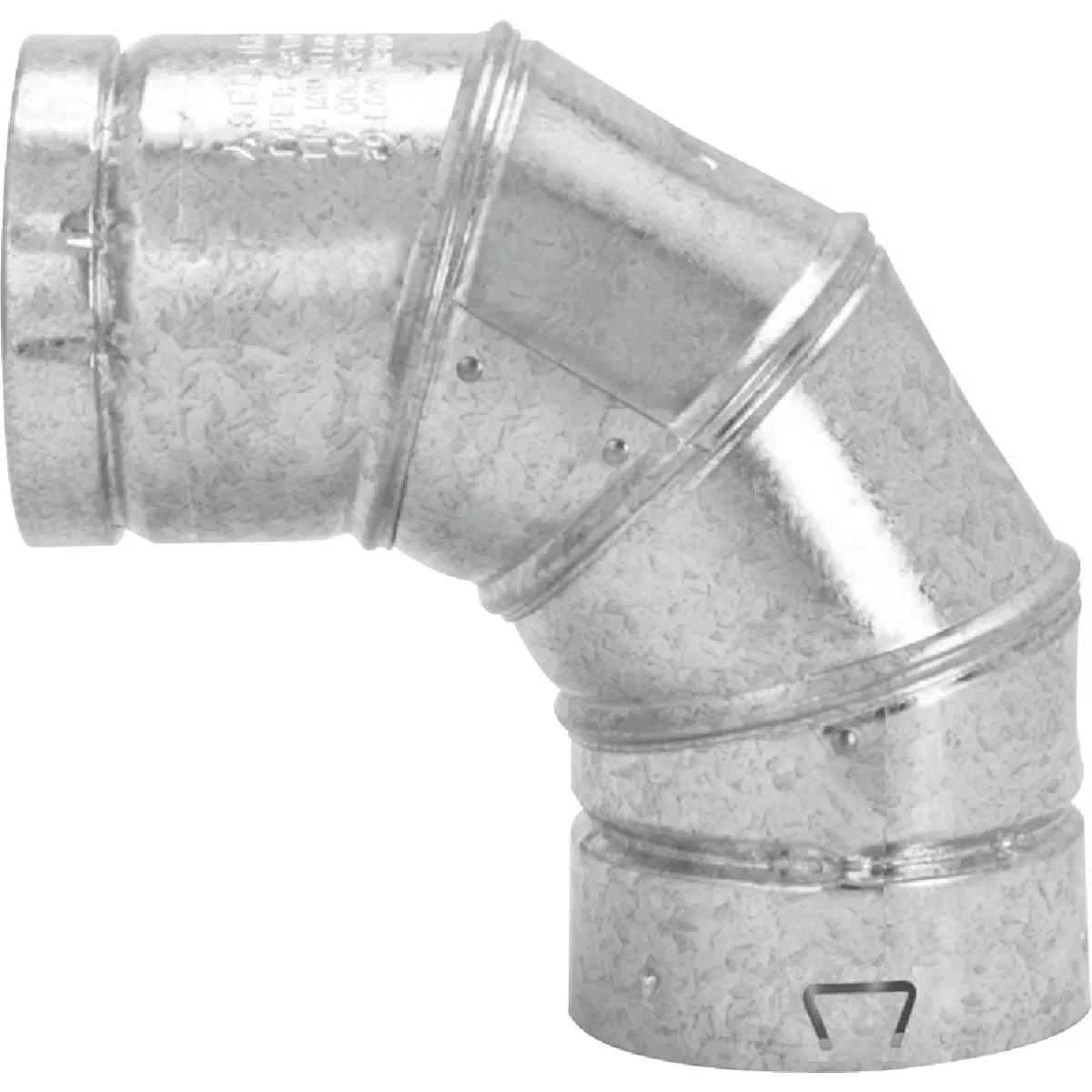

SELKIRK RV 5 In. 90 Degree Adjustable Elbow
Model #105230 UPC 00053713126215
441418
Tap to view
Product overview
Used when an offset is required to avoid obstructions such as rafters, joists and other construction obstacles. Used to orient pipe between vertical and horizontal orientation. Four piece adjustable elbow twists for easy offsets. Size refers to the inside diameter of the pipe or fitting. The outside diameter of RV is approximately 1/2" larger. 3" elbow - 3 gore; 4", 5", and 6" elbow - 4 gore. Type B gas vent.
- 4 Gore
Specifications
| Material | Alum Liner/Galv Steel Jacket |
| Grade | UL Listed |
| Temperature Rating | 550 F |
| Size | 5 In. |

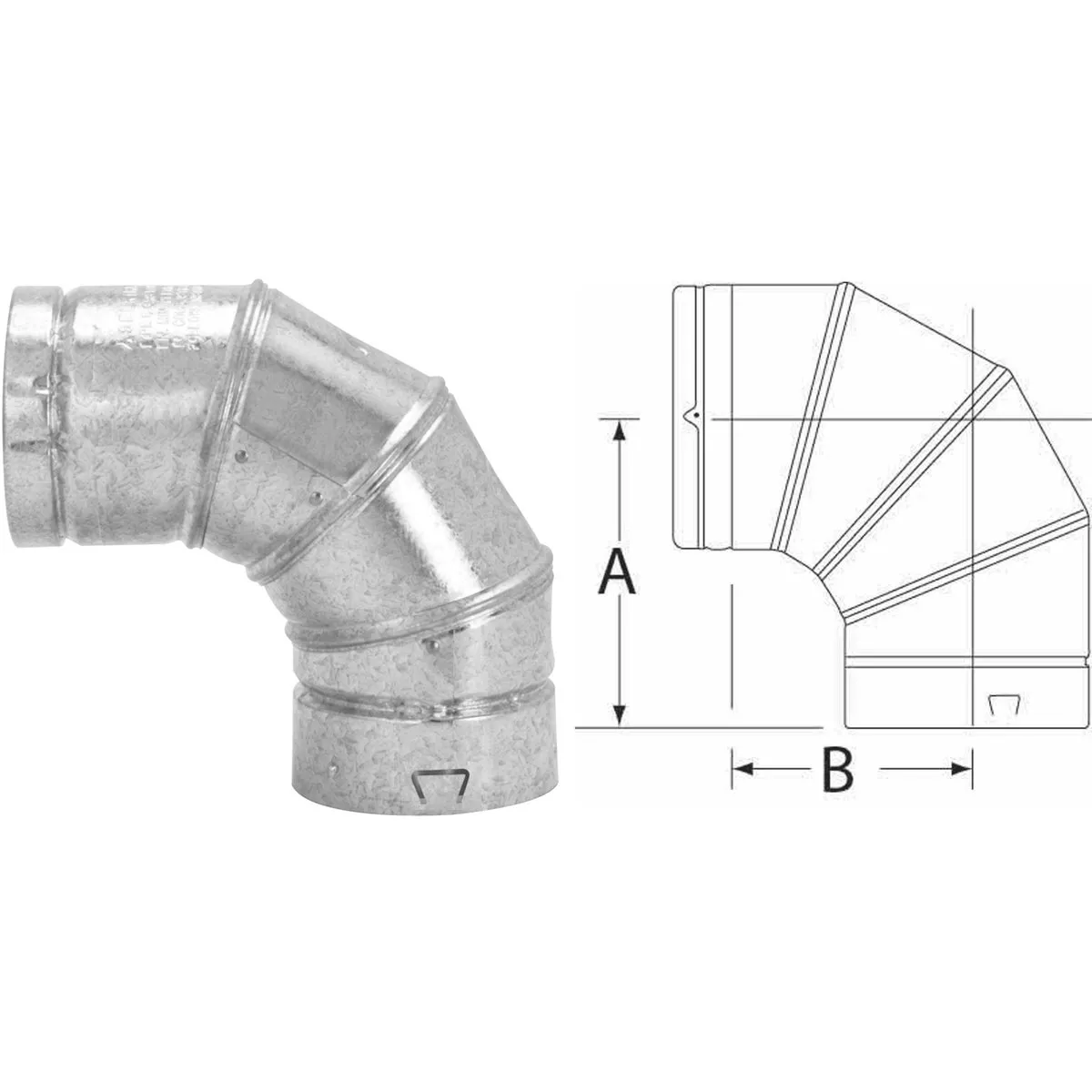

| A Size | 6-3/8 In. |
| B Size | 4-11/16 In. |
| Brand | SELKIRK |
| UPC | 00053713126215 |
| Product type | Adjustable Elbow |
