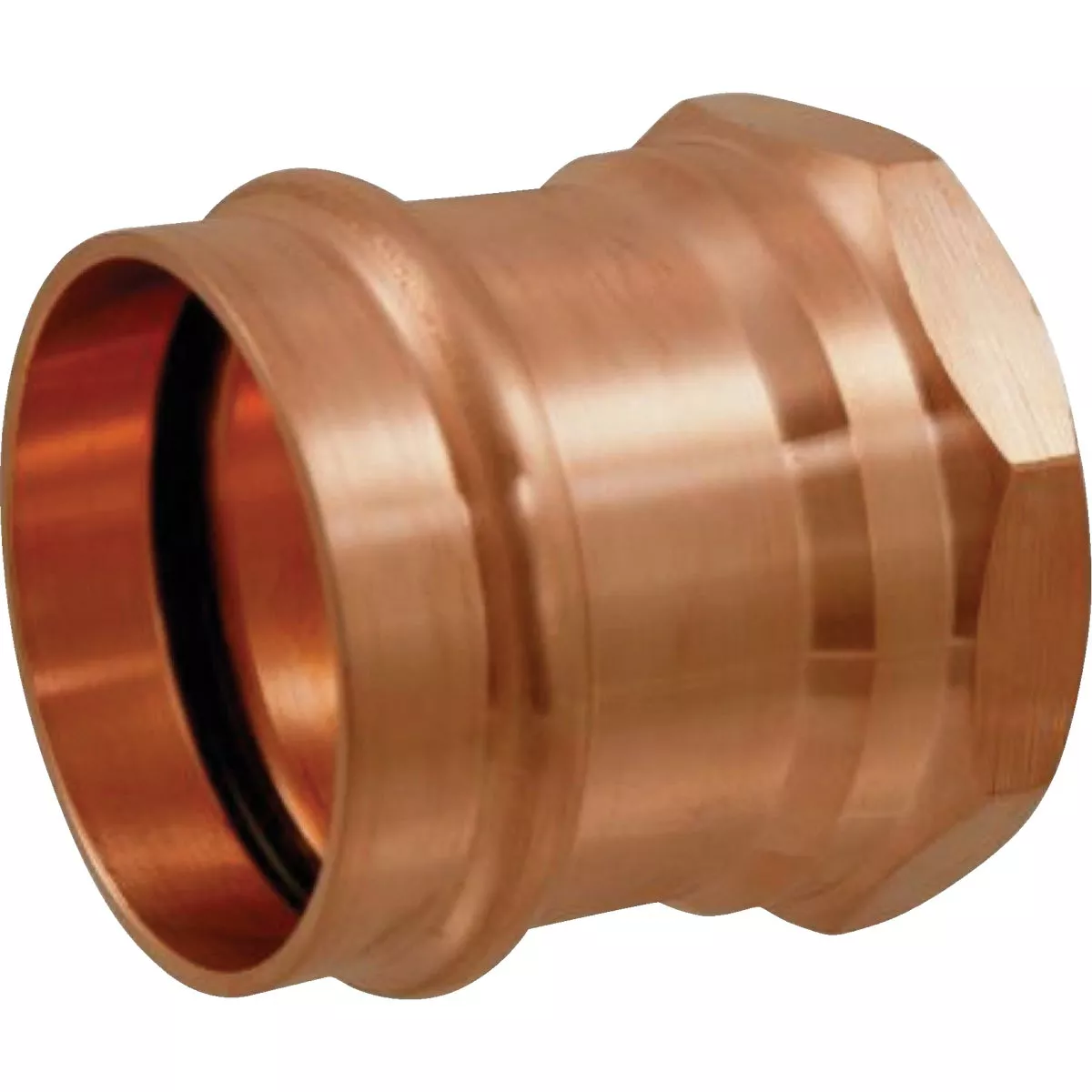

NIBCO 1-1/4 In. Press x 1-1/4 In. Female Copper Adapter
Model #9025550PC
Item #410374
UPC 00039923293435
Tap to view
Product overview
The NIBCO Press System copper female adapter features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. The female adapter has a press connection and female NPT thread. These fittings provide a method for adapting a press connection to a threaded connection.
- Operating pressure 200 psi cwp
- Temperature range -20F to 250F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- Complies with ASME B16/51 Performance
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
Specifications
| Material | Copper |
| Connection Type | Press x Female |
| Fitting Size 1 | 1-1/4 In. |
| Fitting Size 2 | 1-1/4 In. |
| Connection Type 1 | Press |
| Connection Type 2 | FIP |
| Brand | NIBCO |
| UPC | 00039923293435 |
| Product type | Copper Adapter |
