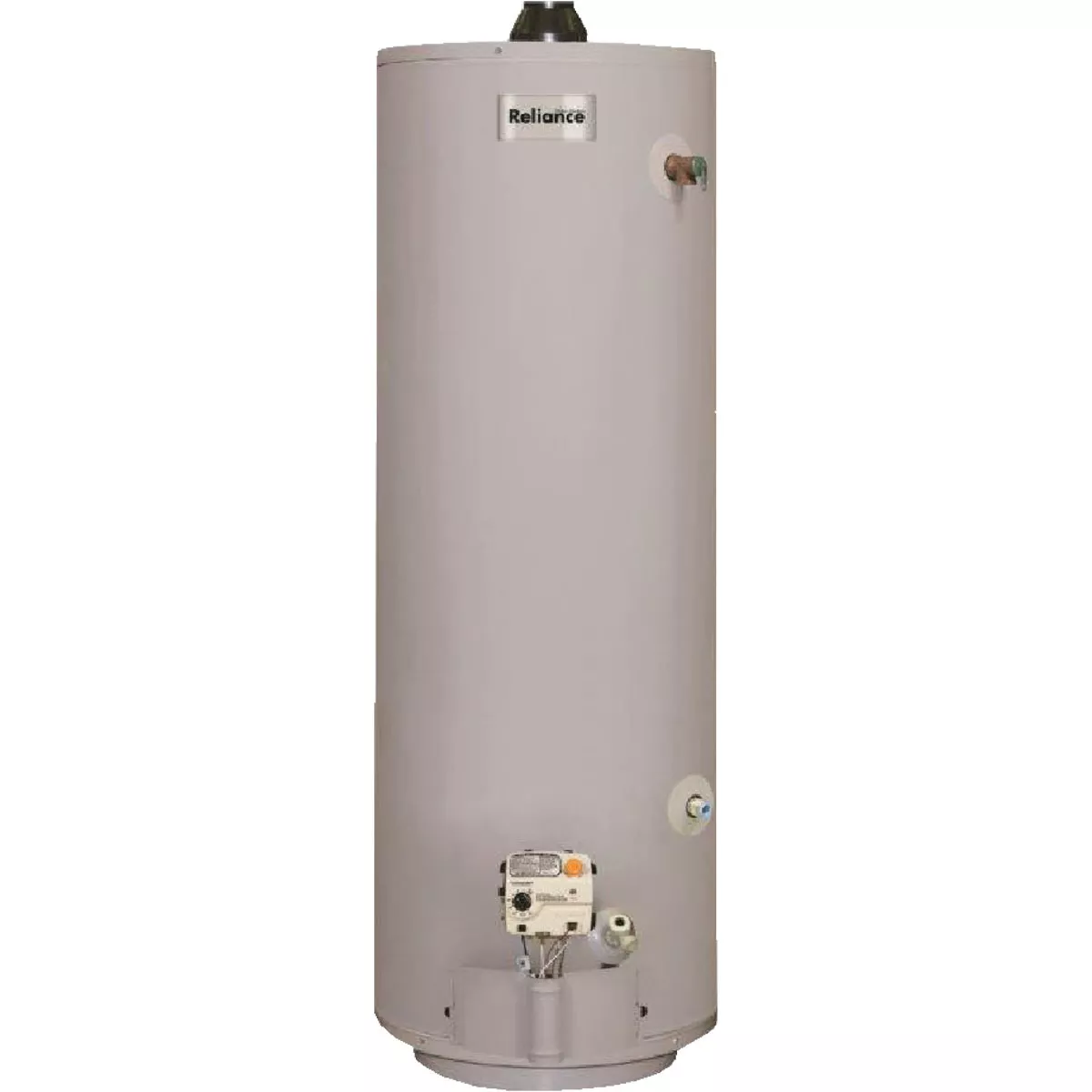

Reliance 30 Gal. Tall 6 Year 30,000 BTU Direct Vent Natural Gas/Liquid Propane Water Heater for Mobile Home
Model #6 30 MDV UPC 00091193008508
401923
Tap to view
Product overview
For installation in non-occupied area. Direct pipe system. Does not include vent kit. Convertible fuel control, standard atmospheric draft hood and venting system, shipped with necessary parts to setup either natural or propane gas. Electronic gas control valve provides precise temperature control and operational status. Piezo igniter allows safe and easy 1-hand pilot ignition. Meets or exceeds NAECA (National Appliance Energy Conservation Act) requirements, glass lined, factory installed T & P (temperature and pressure) valve. Polymer-lined nipples allow easy water connection hook up. D-rated to 5,400 Ft. elevation. Premium grade anode rod, 2 In. insulation. For manufactured home (Mobile Home) use only.
- Eco-friendly green choice gas burner - reduces NOx emissions by 33% over standard burners
- Piezo igniter allows for easy one-hand pilot ignition without matches
- PEX dip tube
- Glass-lined tank with anode rod protects against corrosion
- Environmentally-friendly non-CFC foam insulation
- Factory-installed PEX polymer lined heat trap nipples
- Factory-installed temperature & pressure (T&P) relief valve
- Meets HUD requirements for manufactured housing
- Side taps for easy installation
- 6-year limited tank & parts warranty, 1-year labor warranty
Specifications
| Height (In.) | 58 |
| Width (In.) | 18 |
| Depth (In.) | 18 |
| Vent Diameter (In.) | 3 |
| Water Connection Size (In.) | 3/4 |
| Application Type | Mobile Home |
| BTU Rating | 30,000 |
| Family Size | 1-2 |
| For Mobile Home Use | Yes |
| Fuel Type | Natural Gas or Propane |
| Gas Connection Size (In.) | 1/2 |
| Nominal Tank Capacity (Gal.) | 30 |
| Recovery Rate at 90F Rise (Gal./Hr.) | 31 |
| Warranty | 6 Year |
| Water Heater Profile | Tall |
| Uniform Energy Factor | 0.61 |
| Ventilation Type | Direct Vent |
| Brand | Reliance |
| UPC | 00091193008508 |
| Product type | Gas Water Heater |
