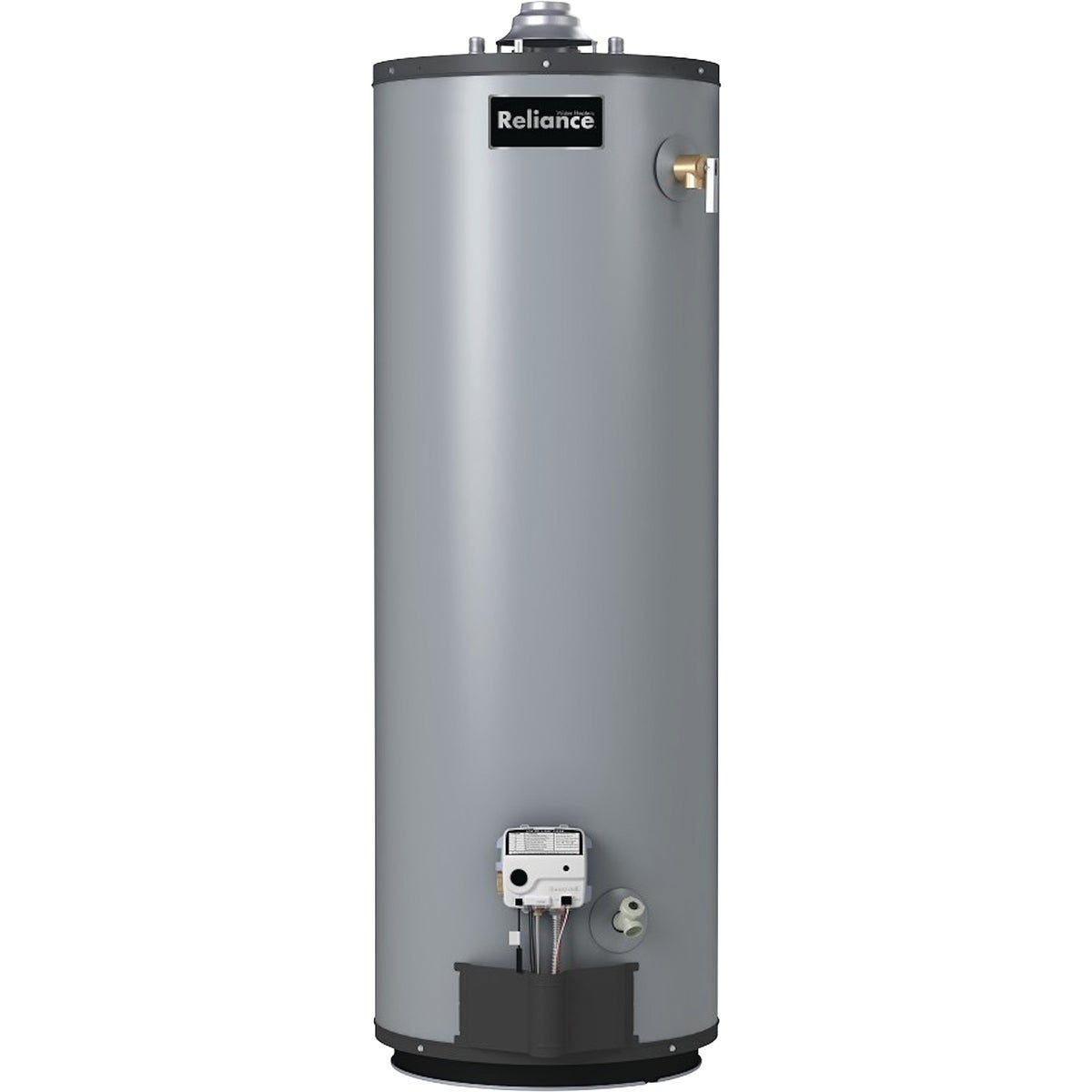

Reliance 50 Gal. Tall 9 Year 40,000 BTU Self-Cleaning Natural Gas Water Heater
Model #9 50 NKRTItem #401862 UPC 00091193005613
Tap to view
Product overview
Self-cleaning natural gas water heater. For installations from sea level to 10,100 Ft. Draft diverter outlet size: 3 In. with integrated adapter for 4 In. vent option. T & P relief valve, glass lined tank, magnesium anode rod, PEX polymer lined heat trap nipples. Self-cleaning PEX dip tube, Next Generation FVIR Approved, stainless steel flame arrestor. Air intake entire base of heater, door mounted manual reset temperature cut off. Self powered Honeywell Millivolt Generator Gas Control Valve. 9 year tank & parts warranty. Not for use in mobile/manufactured homes. Meets new NAECA 2015 Efficiency Standards.
- Electronic gas control valve that provides precise tempeature control and operational status
- Self-cleaning PEX dip tube helps maintain efficiency
- Glass-lined tank with heavy-duty anode rod protects against corrosion
- Piezo igniter allows for easy one-hand pilot ignition without matches
- Factory-installed PEX polymer lined heat trap nipples
- Factory-installed temperature & pressure (T&P) relief valve
- 9-year limited tank & parts warranty, 1-year labor warranty
Specifications
| Width | 21 In. |
| Type | Residential |
| Warranty | 9 Year |
| Capacity | 50 Gal. |
| Height | 60-3/4 In. |
| Depth | 21 In. |
| Fuel Type | Natural Gas |
| BTU Rating | 40,000 |
| Uniform Energy Factor | 0.62 |
| Vent Size | 3 In. or 4 In. |
| For Mobile Home Use | No |
| Style | Tall |
| Recovery Rate | 41gph |
| Family Size | 4 |
| Tank Capacity | 50 Gal. |
| Application Type | Residential |
| Width (In.) | 21 |
| Height (In.) | 60.75 |
| Depth (In.) | 21 |
| Nominal Tank Capacity (gallons) | 50 Gal. |
| Vent Diameter (In.) | 3 or 4 |
| Recovery Rate at 90F Rise (gallons/hour) | 41gph |
| Water Heater Profile | Tall |
| Nominal Tank Capacity (Gal.) | 50 |
| Recovery Rate at 90F Rise (Gal./Hr.) | 41 |
| Water Connection Size (In.) | 3/4 |
| Gas Connection Size (In.) | 1/2 |
| Brand | Reliance |
| UPC | 00091193005613 |
| Product type | Gas Water Heater |
