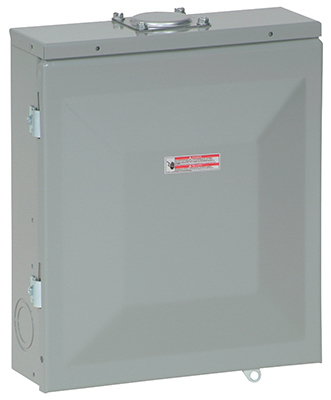

Eaton BR 125A 4-Space 8-Circuit Main Lug Outdoor Load Center
Model #BRC48L125RP UPC 00786689212575
543073
Tap to view
Product overview
Main lug load center designed for service entrance equipment. Main lugs only. Single-phase, 3-wire, flush or surface mount. Solid neutral bar and cover included. Optional ground bar kits must be ordered separately. Load centers that accept BD and BQ type circuit breakers have a notched bus bar. UL (Underwriter's Laboratories) listed.
- Compact design for easier installation
- Designed for service entrance equipment
- Single-phase, 3-wire, flush or surface mount
- Solid neutral bar and cover included
- 125 BR series
- UL Listed
Specifications
| Amperage | 125 |
| Voltage | 120/240 |
| Series | BR |
| Number of Spaces | 4 |
| Max Number of Poles | 8 |
| Enclosure Type | Nema 3R |
| Mount Type | Surface |
| Phase | Single |
| Wire Size | #14 To 1/0 |
| Certification | UL Listed |
| Width (In.) | 6.5 |
| Height (In.) | 11.75 |
| Depth (In.) | 4.5 |
| Brand | Eaton |
| UPC | 00786689212575 |
| Product type | Main Lug Load Center |
