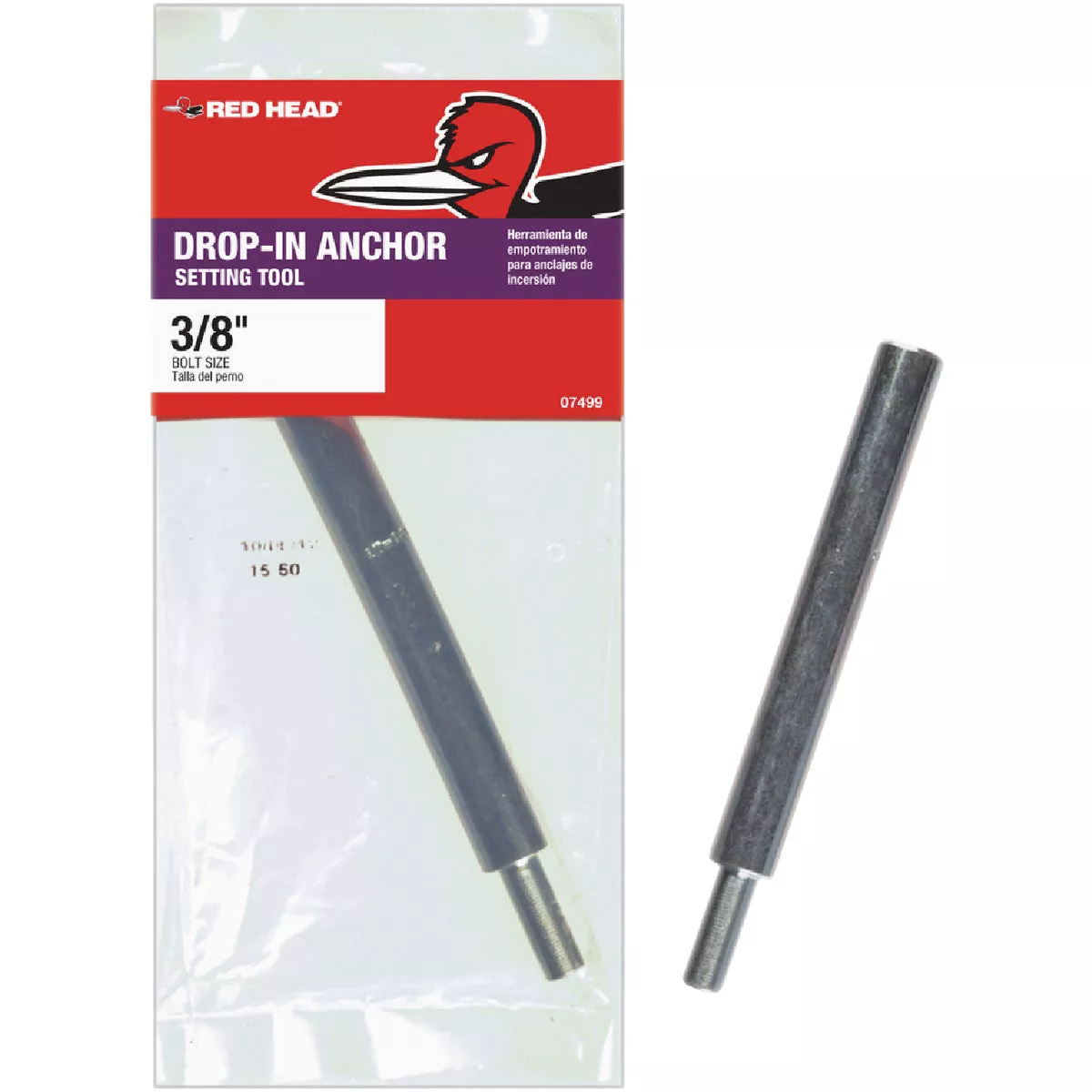

Red Head 3/8 In. Hollow-Core Drop-In Anchor Setting
Model #07499 UPC 00092097074996
255562
Tap to view
Product overview
The Red Head Hollow Core Drop In Anchor Setting Tool is a necessary accessory for properly setting drop-in anchors. The anchor is properly expanded when the shoulder of the setting tool is flush with the top of anchor. Typical applications for a drop-in anchor are overhead applications, transformers and meters, ceiling fans, and electrical light fixtures. To set a Red Head Drop-In anchor below the surface, drill a hole deeper than the anchor length, thread the bolt through the anchor, then hammer the anchor into the hole until the bolt head is at the desired depth. Remove the bolt and set the anchor with this setting tool.
- Necessary accessory for properly setting drop-in anchors
- Designed for use with Red Head 3/8 in Drop-in anchors (not included)
- For commercial and residential concrete fastening applications
- Typical applications include overhead applications, transformers and meters, ceiling fans, and electrical light fixtures
- Steel construction with zinc plating
- Feature an internally threaded, all-steel shell with expansion cone insert and flush embedment lip
- Anchors should be installed with carbide tipped hammer drill bits made in accordance to ANSI B212.15-1994 specifications
- Made in the USA
Specifications
| Material | Steel |
| Finish | Zinc |
| Diameter | 3/8 In. |
| Brand | Red Head |
| UPC | 00092097074996 |
| Product type | Concrete & Masonry Anchors |
