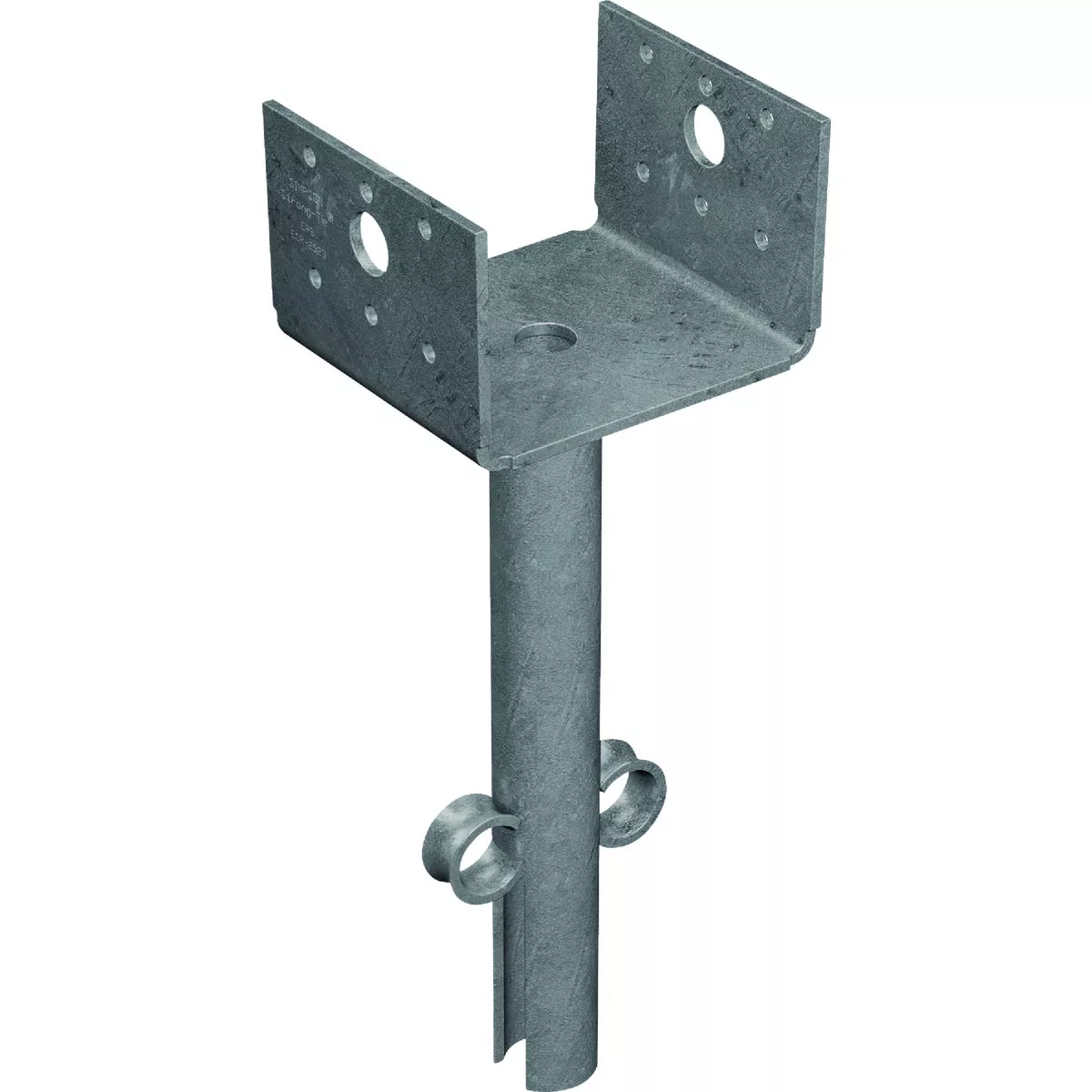

Simpson Strong-Tie 4X4 Hot Dipped Galvanized Elevated Post Base
Model #EPB44HDG
Item #151659
UPC 00044315123801
Tap to view
Product overview
Post and column bases secure the bottom of posts or columns to concrete and are perfect for decks or patio covers. Models are available for attaching to existing hardened concrete, wet concrete, as well as wood. The cast-in-place EPB series provides a secure connection to the concrete and the code-required 1 In. standoff to help prevent rot at the post end.
- Added standoff adjustability to suit a variety of applications
- Install in wet concrete
- Provides the code-required 1 In. standoff when properly installed, allows up to 2-1/2 In. of standoff above concrete (if desired)
- Not recommended for non top-supported installations (such as fences or unbraced carports)
- Nominal post size: 4x4
- Made with 12 Ga. base plate, 1-1/16 In. OD x 8 In. pipe
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Specifications
| Material | Steel |
| Finish | Galvanized |
| Size | 4x4 |
| Gauge | 12 |
| Install With | (3)1/2In. nail;(10)1-1/2 In. SD screw |
| Brand | Simpson Strong-Tie |
| UPC | 00044315123801 |
| Product type | Post Base |
