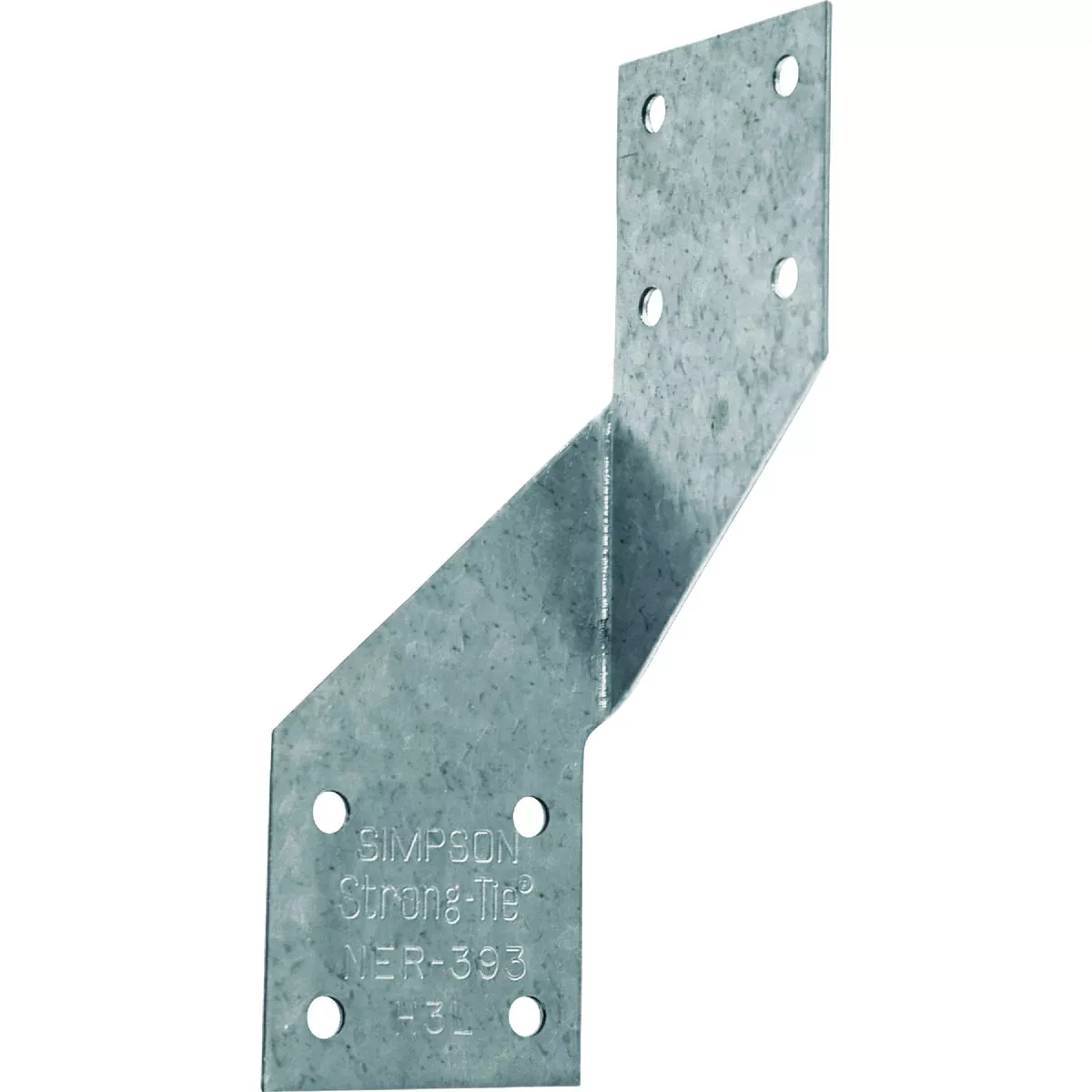

Simpson Strong-Tie ZMAX H3 Galvanized Hurricane Tie
Model #H3Z UPC 00044315079207
134513
Tap to view
Product overview
The Simpson Strong-Tie H3 single-sided hurricane tie is designed to resist moderate loads at the rafter/truss-to-top-plate connection. As part of a continuous load path, the H3 resists both lateral and uplift loads. H3 ties are available in left- and right-hand models and can be installed in pairs.
- Provides a connection between the rafter or truss and the wall of the structure that helps resist wind and seismic forces
- Approved for installation with load-rated Strong-Drive SD Connector screws
- Use also for a variety of connections where one member crosses another
- Made from 18 Ga. steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Packaging - 9 properties
Specifications
| Material | Steel |
| Finish | ZMAX Galvanized |
| Gauge | 18 |
| Fasteners to Rafters | (8) 0.131 In. x 2-1/2 In. Nails |
| Fasteners to Plates | (8) 0.131 In. x 2-1/2 In. Nails |
| Fasteners to Studs | (8) 0.131 In. x 2-1/2 In. Nails |
| Brand | Simpson Strong-Tie |
| UPC | 00044315079207 |
| Product type | Hurricane Tie |
