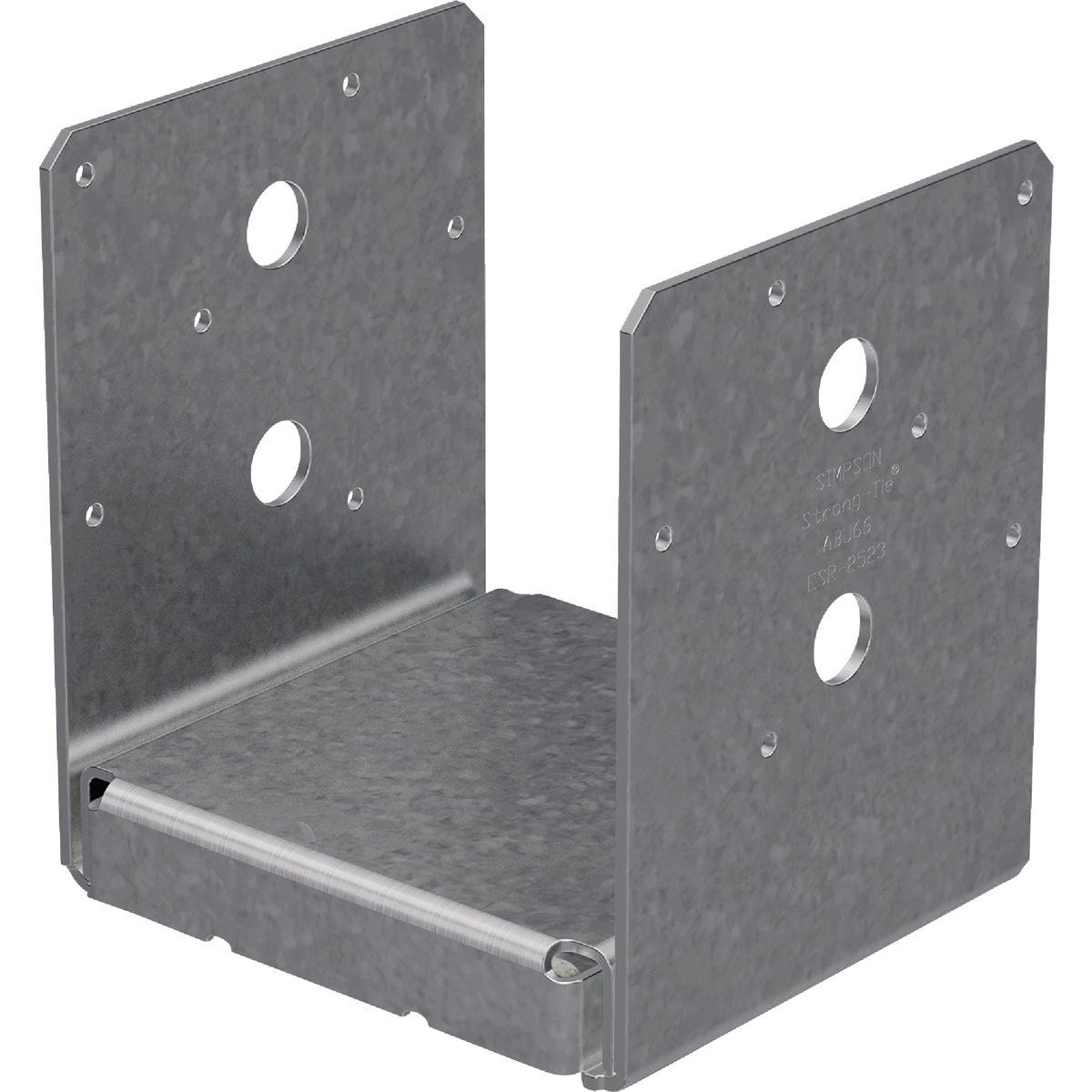

Simpson Strong-Tie ABU ZMAX Galvanized Adjustable Standoff Post Base for 6x6 Rough

Model #ABU66RZ
Item #132405
UPC 00707392179412
Shop Simpson Strong-Tie
Simpson Strong-Tie ABU ZMAX Galvanized Adjustable Standoff Post Base for 6x6 Rough

+ 1 more

Simpson Strong-Tie ABU ZMAX Galvanized Adjustable Standoff Post Base for 6x6 Rough
Simpson Strong-Tie ABU ZMAX Galvanized Adjustable Standoff Post Base for 6x6 Rough
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

    The Simpson Strong-Tie ABU is designed to attach wooden posts to existing concrete in high capacity applications. The built-in 1-in. standoff of this adjustable post base helps to prevent rot at the end of the post. The ABU has a slotted anchor hole in the base for adjustability and attaches to the post with nails, Strong-Drive SD Connector screws or bolts. This versatile post base makes a cost-effective option for securing a post to the foundation, with a design built for maximum uplift performance.
    • The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
    • 1-in. standoff design meets code requirements for structural posts installed in basements or exposed to weather or water splash
    • Increased uplift loads for earthquake or wind loading
    • Nominal post size: Rough 6x6
    • Steel gauge: Base 12, strap 10
    • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
    • Install with 0.162 in. x 3-1/2 in. nails or 1/2 in. diameter machine bolts
    MaterialGalvanized Steel
    TypeAdjustable Post Base
    FinishZMAX
    Size6 In. x 6 In.
    GaugeBase 12, strap 10
    Install With3-1/2 In. Nails or 1/2 In. Bolts
    DimensionsRough 6x6
    UpliftNails: 2,475 Lb., Bolts: 2,190 Lb.
    Download18,205 Lb.
    BrandSimpson Strong-Tie
    UPC00707392179412
    Product typePost Base
