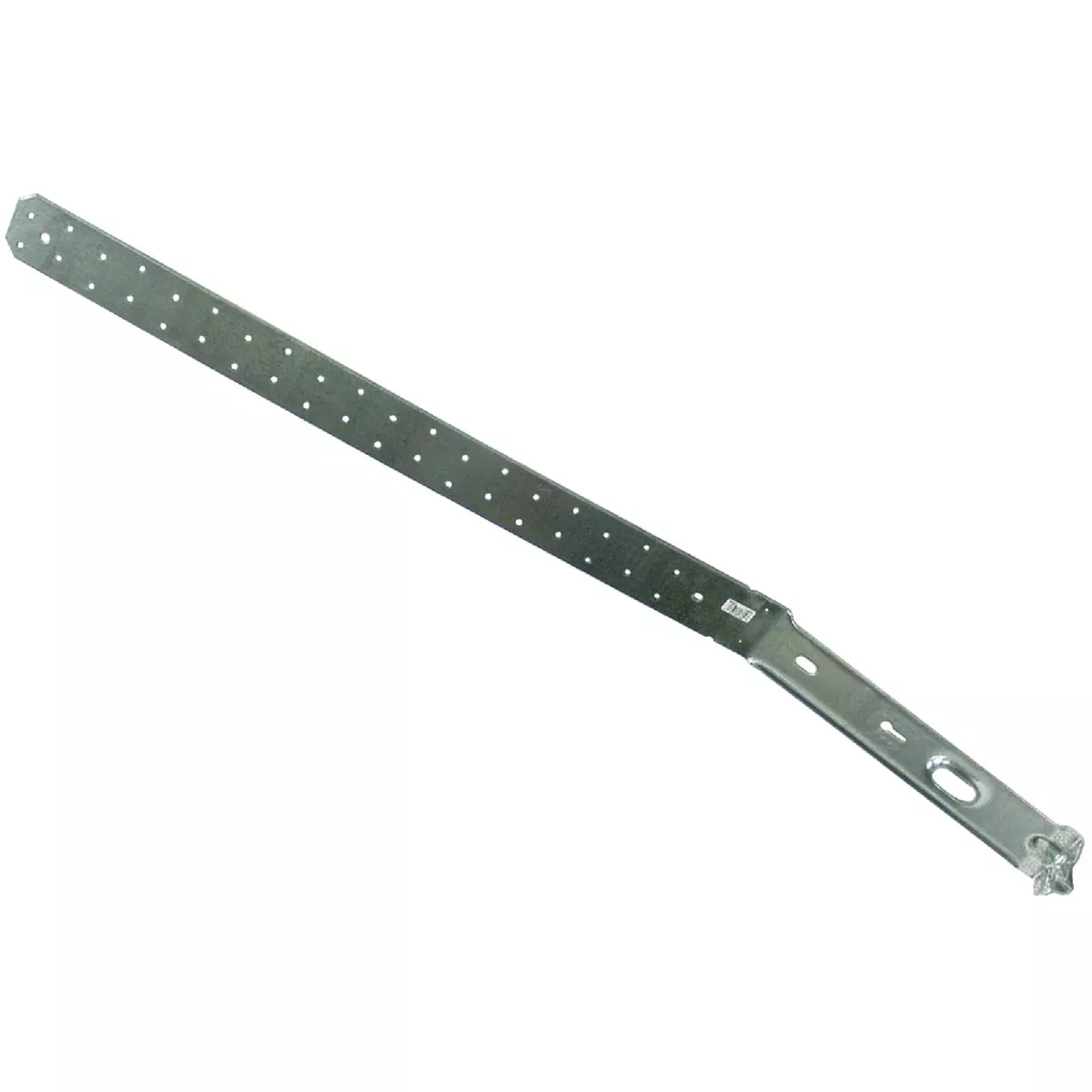

Simpson Strong-Tie 26-1/8 In. L 12 ga Galvanized Steel Strap Tie Holdown
Model #STHD14 UPC 00044315576003
107486
Tap to view
Product overview
This embedded strap tie holdown has a high load capacity and a staggered nail pattern to help minimize splitting. The strap nailing pattern allows for nailing to the edges of double 2x's. A slot below the embedment line allows for increased front to back concrete bond and reduced spalling. Strap nail slots are countersunk to provide a lower nail head profile. 12-gauge galvanized steel. Standard model, strap length 26-1/8", 30-16d sinkers.
- Aids correct installation and improves performance
- Nail strap from the bottom up
- Achieves full load for spalls less that 4 In.
- 26-1/8 In. L.
Specifications
| Material | Galvanized Steel |
| Size | 26-1/8 In. L. |
| Gauge | 12 ga |
| Install With | 38-16d sinkers |
| Brand | Simpson Strong-Tie |
| UPC | 00044315576003 |
| Product type | Strap Tie Holdown |
