This bi-fold door pivot and guide set is constructed from steel. It features a spring-loaded design. The top guide fits a 7/8 in. diameter track and they both fit 3/8 in. diameter holes.
- Designed to be used by a variety of bi-fold door manufacturers
- 3/4 in. diameter nylon roller with a 1/4 in. height
- 3/8 in. diameter base with a 1 in. height
- Parts are made of metal and plastic
- 2-pack
- Mounting hardware included
- A Phillips head screwdriver is required for installation

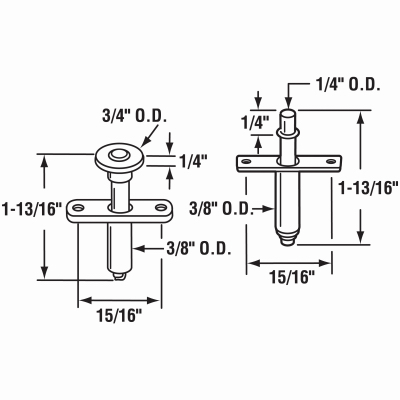

- For further dimensional information, please see the line drawing
