This is a C-tab patio door roller assembly with a 1-1/8 in. diameter concave, or grooved, steel ball bearing roller. As the C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 23/32 in. wide and 1-3/16 in. tall with a dimple width of 7/8 in., and most often used by Solar Industries and a variety of other patio door manufacturers.

• Used by Solar Industries and a variety of other metal framed patio door manufacturers
• 1-1/8 in. diameter roller
• C-tab housing with rear adjust
• Steel housing and ball bearing roller
• The C-shaped tab fits around the corner screw, it is captured by the side stile and bottom rail as the screw draws the two sides together
• Easy to install
• A Phillips head screwdriver is required for installation

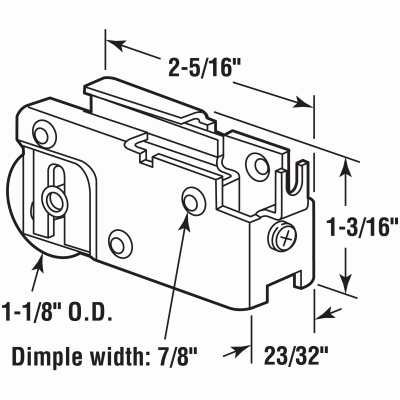

• For further dimensional information, please see the line drawing
