Simpson Strong-Tie

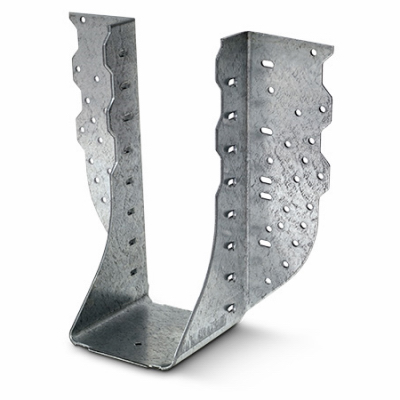

Face-Mount Joist Hanger, HGUS, Galvanized, 4 x 10-In.

MADE IN USA
Simpson Strong-Tie

Face-Mount Joist Hanger, HGUS, Galvanized, 4 x 10-In.

$52.99

Online price. In-store price & availability may vary.

Selected store: change

×

Description

HGUS Galvanized Face-Mount Beam Hanger for 4x10 Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HGUS hangers are designed for applications where higher load values are needed.
  • Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
  • Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
  • Do not bend or remove tabs
  • Joist size: nominal 4x10, 3-1/2 in. glulam
  • Seat width: 3-5/8 in.
  • Hanger height: 9-1/16 in.
  • Made from 12-gauge steel
  • Galvanized (G90) for extra corrosion resistance
