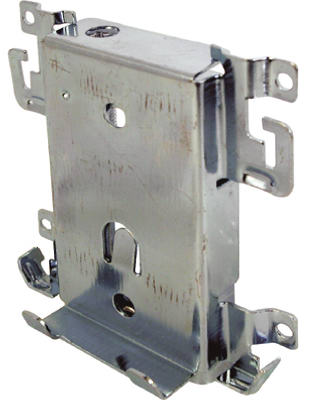

This mirror door roller assembly is constructed of a steel housing and flat edge plastic wheel. The housing measures 3-1/16 in. wide x 3-3/8 in. tall. This mirror door roller assembly features snap-in bracket clips which are designed to lock into steel-framed door rails to hold the doors together. The wheel is constructed of durable plastic which provides for a smooth, long-lasting, quiet roll and it features a narrow 1/8 in. wide flat profile edge. This mirror door roller assembly mounts on the bottoms of sliding mirrored closet doors, it is adjustable once installed, and it is used by a variety of closet door manufacturers.
- Used by Acme and a variety of other mirrored wardrobe door manufacturers
- Mounts to the bottom of mirrored wardrobe doors
- Brackets feature a snap-in clip to lock assembly in place
- Stamped steel housing with a flat nylon roller
- Features a 1-7/16 in. outside diameter wheel in 3-1/16 in. x 3-3/8 in. assembly housing
- For top guide use Prime-Line part N 6791
- A Phillips head screwdriver is required for installation
- For further dimensional information, please see the line drawing
