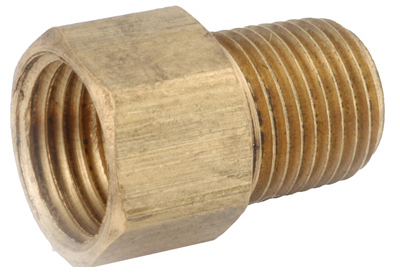

Anderson Metals 5/16"x1/4" Brass Threaded Inverted Flare Connector is crafted from durable brass, ensuring longevity and resistance to corrosion. It withstands temperatures up to 73 degrees Fahrenheit and a pressure rating of 1200, making it suitable for various applications. The 5/16"x1/4" size and inverted flare design provide a secure and leak-free connection.
- Two Piece Construction - Nut And Body
- Use With Copper, Brass, Aluminum, Or Steel Tubing
- Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
- Seats And Threads Are Recessed, Protecting Them
- Shorter Overall Length, for Limited Space Applications
- Shorter Nut Allows Tubing To Be Bent Closer To Fitting
- Fair Vibration Resistance
- Resists Mechanical Pullout
- Easy To Disassemble, And Can Be Reassembed Many Times, With No Effect On The Seal
- Primary Uses: Liquids, Gases And Hydraulic Brake Systems
- To Assemble:
- 1. Cut Smooth, Square End On Tubing
- 2. Slide Nut On Tube - Threads Facing End
- 3. Flare End Of Tube
- 4. Thread Nut Onto Body Until Snug, Then 1/6th Turn
