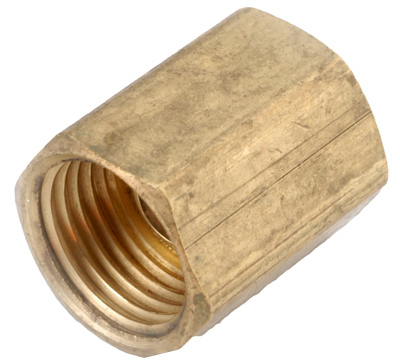

Anderson Metals 3/16" Brass Inverted Flare Union. It connects two pipes with inverted flare fittings. Made from durable brass, this union withstands a maximum working temperature of 73 degrees Fahrenheit and a pressure rating of 1900. Bagged.

• Two Piece Construction - Nut And Body
• Use With Copper, Brass, Aluminum, Or Steel Tubing
• Negavtive 65 Degreees to Plus 250 Degrees F. Temperature Range
• Seats And Threads Are Recessed, Protecting Them
• Shorter Overall Length, for Limited Space Applications
• Shorter Nut Allows Tubing To Be Bent Closer To Fitting
• Fair Vibration Resistance
• Resists Mechanical Pullout
• Easy To Disassemble, And Can Be Reassembed Many Times, With No Effect On The Seal
• Primary Uses: Liquids, Gases And Hydraulic Brake Systems
• To Assemble:
• 1. Cut Smooth, Square End On Tubing
• 2. Slide Nut On Tube - Threads Facing End
• 3. Flare End Of Tube
• 4. Thread Nut Onto Body Until Snug, Then 1/6th Turn
