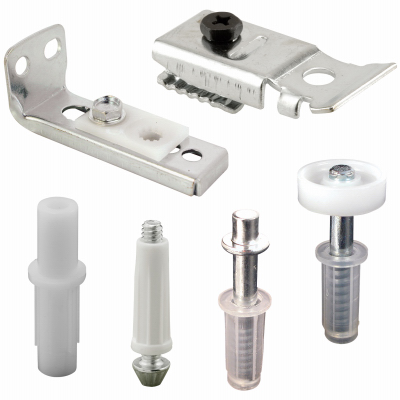

This bi-fold closet door pivot and bracket repair kit includes components constructed of steel and plastic, and fits 3/8 diameter holes. It includes one Prime-Line part N 6543 jamb and floor mount pivot bracket, one Prime-Line part N 6673 bottom pivot, one spring-loaded 7/8 in. diameter Prime-Line part N 6703 top roller guide, one spring-loaded Prime-Line part N 6700 closet top pivot with 1/4 in. diameter pivot, one spring-loaded Prime-Line part N 6672 closet top plastic pivot with 3/8 in. diameter pivot and one Prime-Line part N 6606 top pivot bracket. These repair parts are used on bi-fold doors manufactured by Acme, Alliance, Kenna frame and many others. Use these components to replace damaged or missing hardware to restore a bi-fold closet door system to optimal performance. Used on doors 1 to 1-3/8 in. thick and up to 50 lbs.
- Includes one Prime-Line part N 6543 jamb and floor mount pivot bracket, which is a steel base with an adjustable self-lubricating plastic bushing
- One Prime-Line part N 6673 bottom pivot, the 3/8 in. diameter plastic base houses a grooved pivot tip that screws in or out for adjustment
- One spring-loaded 7/8 in. diameter N-6703 top roller guide, 3/8 in. plastic base. For 1 in. 1-3/8 in. thick doors. Kenna Frame
- One spring-loaded 1/4 in. diameter Prime-Line part N-6700 top pivot, 3/8 in. plastic base. Used by Alliance and a variety of other bi-fold manufacturers
- One spring-loaded Prime-Line part N-6672 bi-fold closet door top plastic pivot with 3/8 in. diameter pivot and base
- 1 Prime-Line part N-6606 top pivot bracket for Acme 2900 Series Bi-Fold Doors (fastens to top track and fits a 1/4 in. spring-loaded pivot pin)

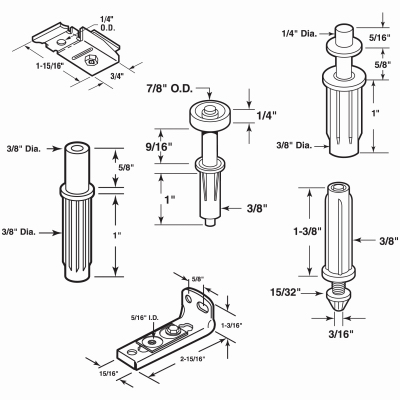

- For further dimensional information, please see the line drawing
