Charlotte Pipe

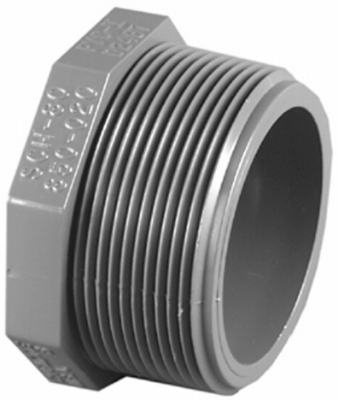

Schedule 80 PVC MPT Plug, 3/4 In.

Charlotte Pipe

Schedule 80 PVC MPT Plug, 3/4 In.

$2.99

Online price. In-store price & availability may vary.

×

Selected store: change

×

Description

Pipe & fittings are dark gray in color. Joined with solvent cement conforming to ASTM D2564. PVC Schedule 80 pressure fittings with straight, angular turns must be used. Do NOT use fittings with gradual sanitary turns for pressure systems. Application: Distribution of pressurized Liquids. Can be used in industrial applications. NOT for compressed air or gasses. Standards: ASTM D1785, ASTM D2467, NSF Standard 14, NSF Standard 61. Dimensional Standard: Schedule 80 Iron Pipe Size (IPS). Cell Class: 12454 (Type 1). Material Code: PVC 1120. Max. Working Temp: 140F. For special applications, threaded connections, unions and flanges, a temperature de-rating factor must be used to determine the pressure rating at temperatures hotter than 73F. Joining Method: Solvent Weld Joints - Solvent Cements must meet ASTM D2534. Primer should be IPS P-70 or Oatey Industrial Grade. May be flanged with Schedule 80 flanges. Threading PVC 80 pipe can be done. MIP and FIP adapters are available.
  • 3/4-in.
  • Maximum Pressure 690 PSI.
  • NSF Safety Listed.
  • Dark gray in color.
  • Joined with solvent cement conforming to ASTM D2564.
  • PVC Schedule 80 pressure fittings with straight, angular turns must be used.
  • Do NOT use fittings with gradual sanitary turns for pressure systems.
  • Application: Distribution of pressurized Liquids.
  • Can be used in industrial applications.
  • NOT for compressed air or gasses.

Specifications

SKU:654324
Weight:0.02
Country of Origin:US
Package Width:1.0
Package Length:1.0
Package Height:1.0
Model Number:PVC 08113 1200HA
Brand:Charlotte Pipe
Manufacturer Name:CHARLOTTE PIPE & FOUNDRY CO.
California Residents Proposition 65:Warning:
This product can expose you to chemicals including titanium dioxide and carbon black which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
