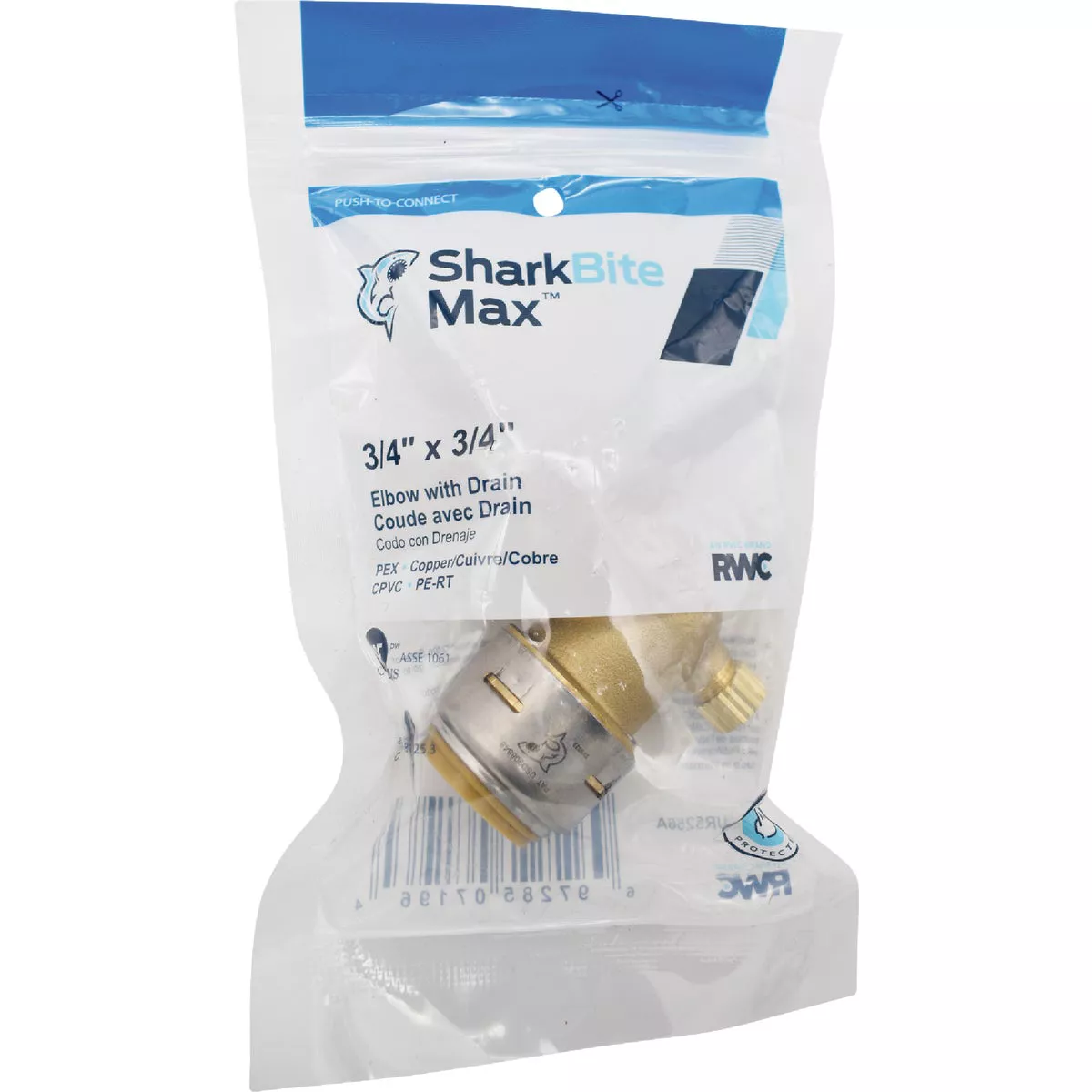

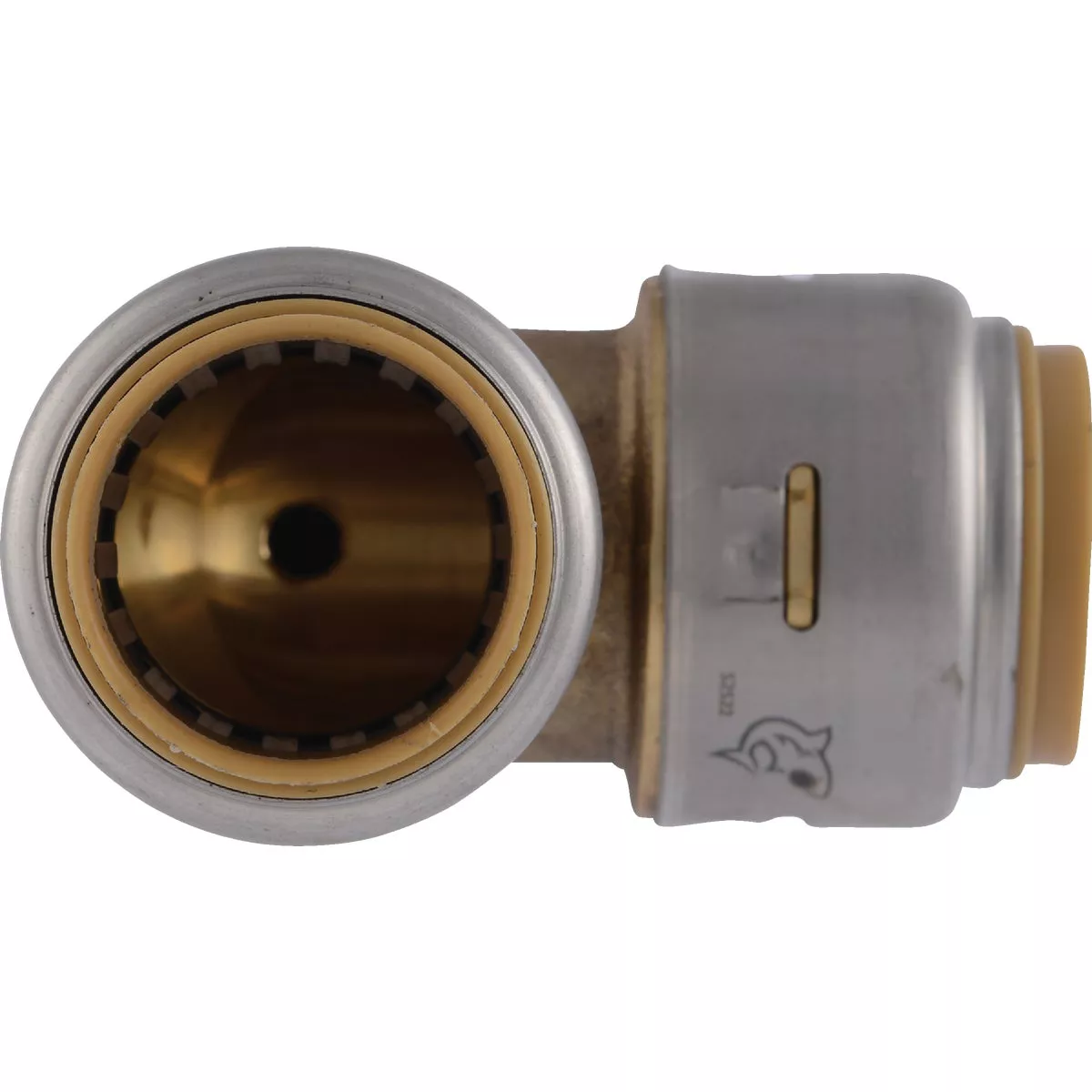

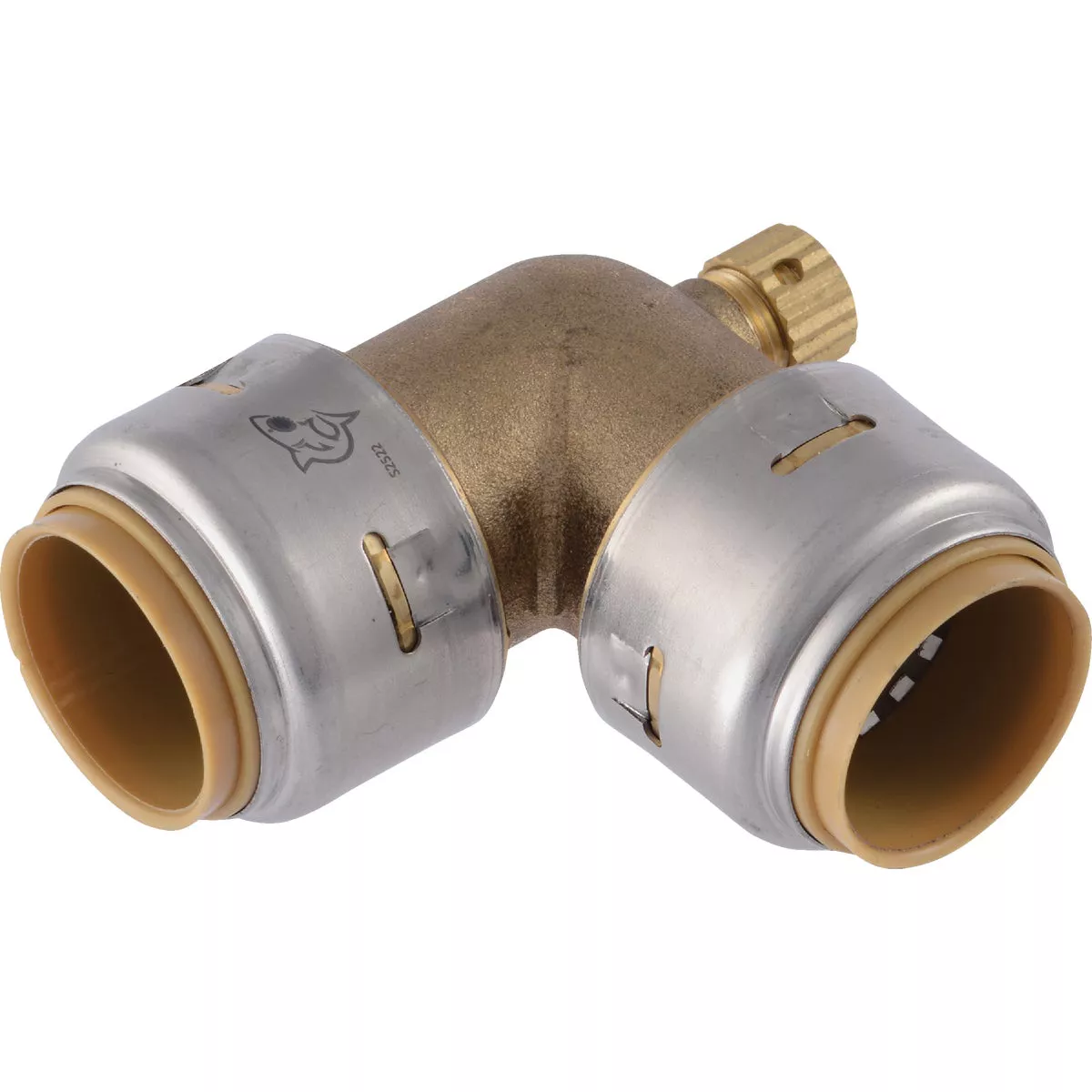

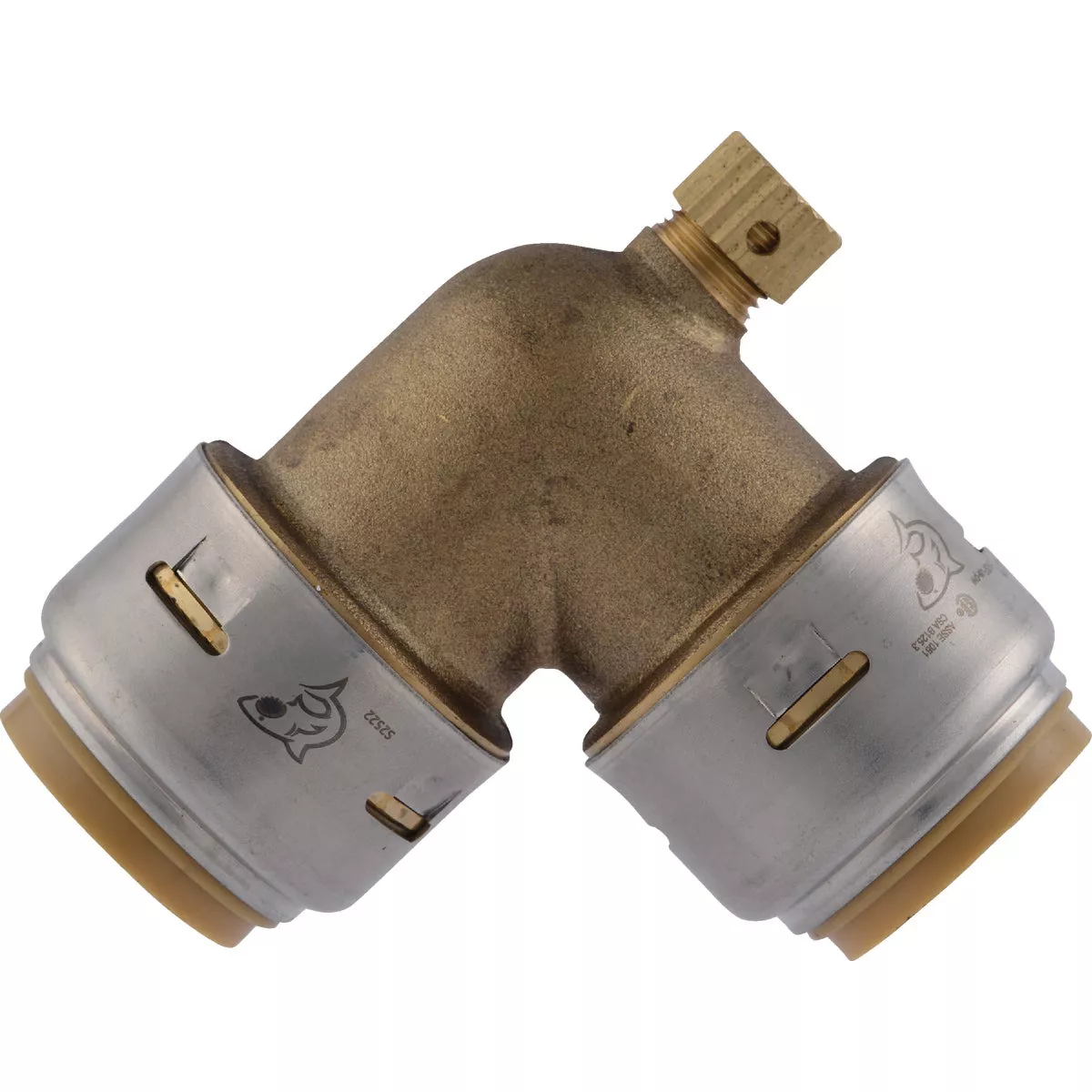

SharkBite 3/4 In x 3/4 In. 90 Deg. Push-to-Connect Brass Elbow with Drain
Model #UR5256AItem #478259 UPC 00697285071964
Tap to view
Product overview
SharkBite Max push-to-connect fittings allow you make pipe connections with half the insertion effort while withstanding double the burst pressure. Featuring a newly designed stainless-steel retainer, SharkBite Max delivers additional strength and durability while providing a 250-psi pressure rating. The re-engineered body allows you to insert the pipe using less effort and doesnt require a PEX tube liner. No soldering, clamps, unions, glue, or special tools are required for installation. They are the fastest way to connect PEX, copper, CPVC, PE-RT and HDPE pipe. The fitting can be rotated after installation for quick adjustments, and removing the fitting is just as fast with a disconnect tool, allowing fittings and valves to be changed or reused. (SharkBite push-to-connect fittings are the fastest when compared to other conventual plumbing methods. All other comparisons relate to first generation SharkBite push-to-connect products.) Half the insertion effort, double the burst pressure. Stainless steel retainer adds strength and durability. High-performance DZR lead-free brass body and can be rotated after installation. No tube liner required for PEX.
- Compatible with PEX, copper, CPVC, PE-RT and HDPE pipes in any combination
- No special tools, crimping, glue or soldering required
- Can be installed on wet lines and pressure tested immediately
- Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
- Large diameter fittings (1-1/4 in. - 2 in.) require a Stiffener (sold separately) when connecting to PEX pipe
- Remove using a Disconnect Clip or Disconnect Tongs (both sold separately)
- Rated for 200 psi and 200F (93C)
- 5-year warranty when properly installed with HDPE SDR-9, 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT
- Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool (both sold separately)
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
Specifications
| Material | Brass |
| For Use With | Underground/Behind-The-Wall |
| Type | Push |
| Angle | 90 Deg. |
| Pressure Rating | 200 psi |
| Temperature Rating | 200 F |
| Fitting Size 1 | 3/4 In. |
| Fitting Size 2 | 3/4 In. |
| Connection Type 1 | Push |
| Connection Type 2 | Push |
| Pressure Rating (psi) | 200 |
| Maximum Working Temperature (F) | 200 |
| Fitting Type | Elbow |
| Brand | SHARKBITE |
| UPC | 00697285071964 |
| Product type | Brass Elbow |
