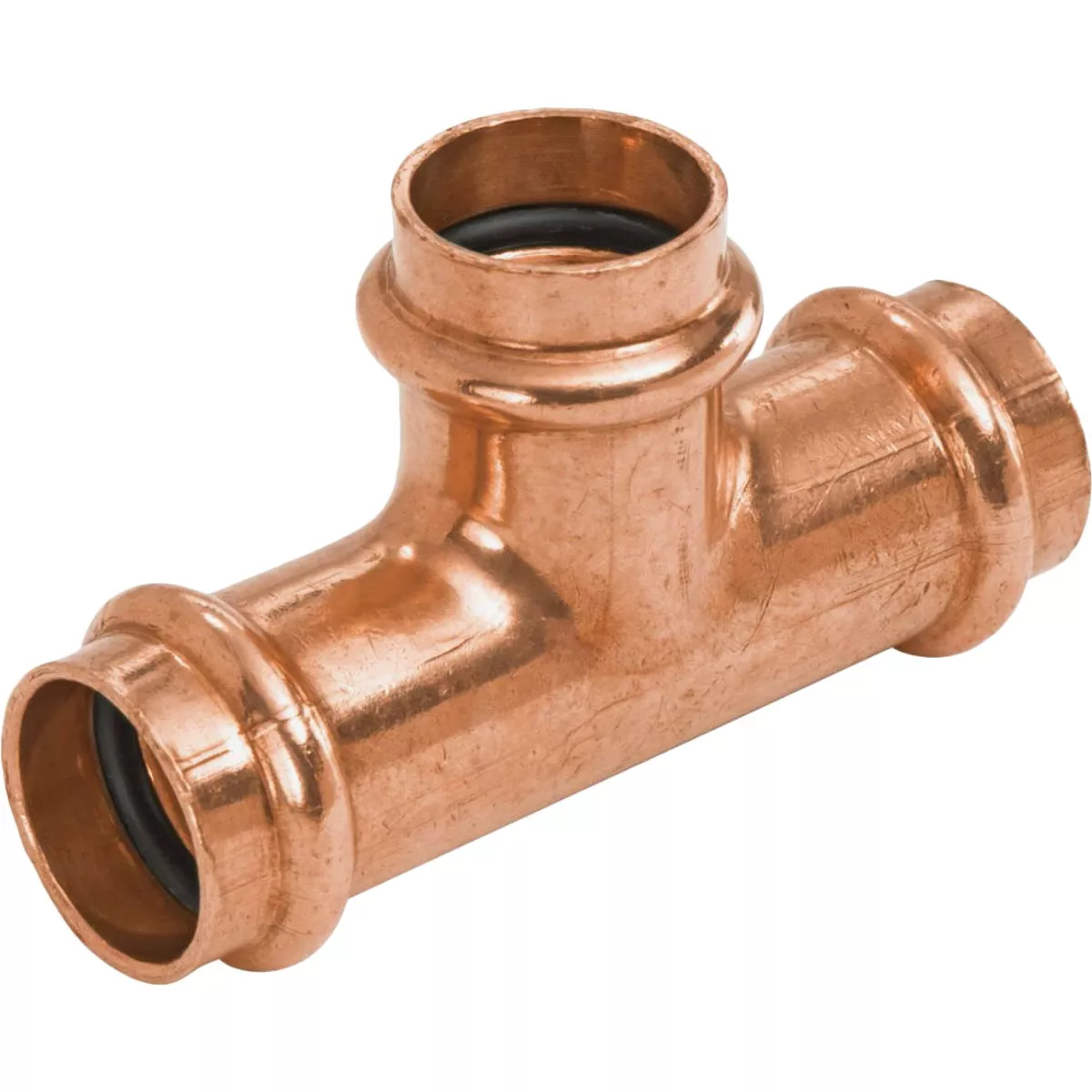

NIBCO 3/4 In. x 1/2 In. x 3/4 In. PxPxP Press Copper Tee
Model #9098851PCUItem #477866 UPC 00039923385895
Tap to view
Product overview
The NIBCO Press System wrot copper tee features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The tee has press connections and allows for a connection to be made in a continuous pipeline and branch out to a different direction.
- Operating pressure 200 psi CWP max
- Operating emperature range: 20 F to 250 F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- Complies with ASME B16/51 performance
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
Specifications
| Material | Copper |
| Connection Type | Press |
| Fitting Size 1 | 3/4 In. |
| Fitting Size 2 | 1/2 In. |
| Fitting Size 3 | 3/4 In. |
| Connection Type 1 | Press |
| Connection Type 2 | Press |
| Connection Type 3 | Press |
| Fitting Type | Tee |
| Brand | NIBCO |
| UPC | 00039923385895 |
| Product type | Copper Tee |
