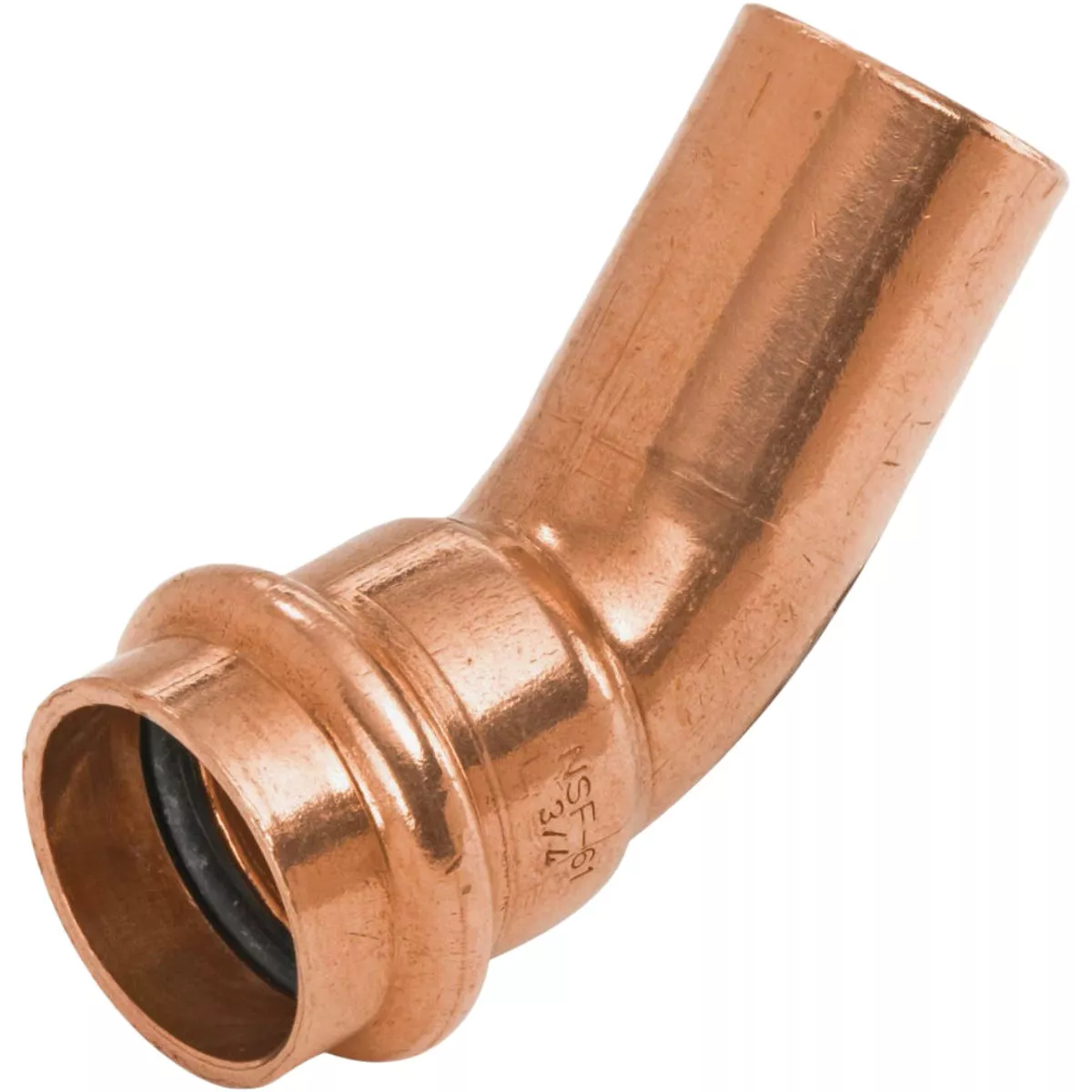

NIBCO 3/4 In. FTG x 3/4 In. Press 45 Deg. Press Copper Elbow (1/8 Bend)
Model #9046300PCUItem #457686 UPC 00039923307835
Tap to view
Product overview
The NIBCO Press System copper 45-degree fitting elbow features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The elbow has a male fitting end and a press connection. The fitting provides a method of changing the pipeline direction by 45 degrees between a press connection and a fitting connection which can either be soldered or pressed.
- Operating pressure 200 psi CWP max
- Operating emperature range: 20 F to 250 F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- Complies with ASME B16/51 performance
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
Specifications
| Material | Copper |
| Type | Street |
| Angle | 45 Deg. |
| Connection Type | Press |
| Fitting Size 1 | 3/4 In. |
| Fitting Size 2 | 3/4 In. |
| Connection Type 1 | MIP |
| Connection Type 2 | Press |
| Fitting Type | Elbow |
| Brand | NIBCO |
| UPC | 00039923307835 |
| Product type | Copper Elbow |
