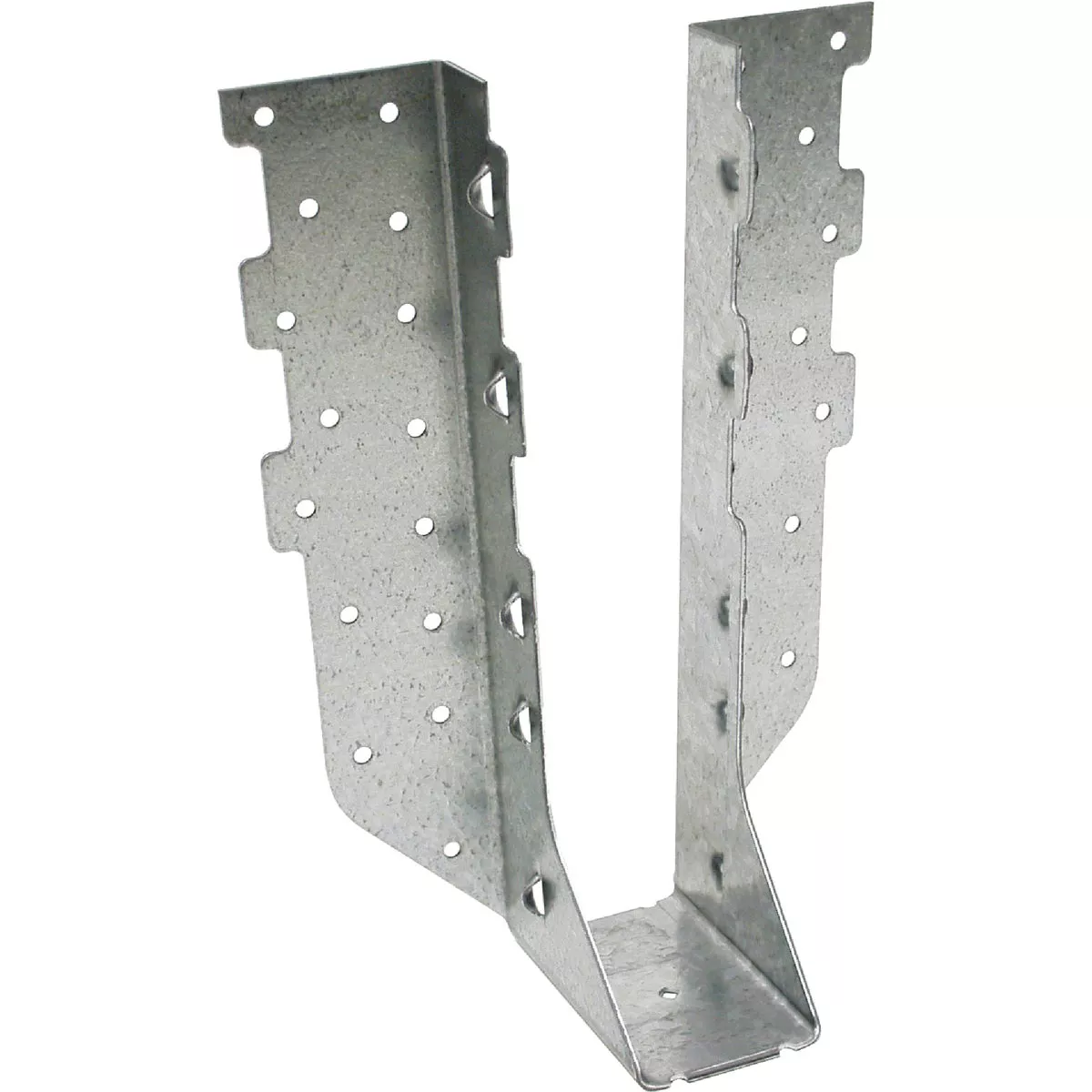

Simpson Strong-Tie 2X10 Galvanized Double Shear U-Shaped Joist Hanger
Model #HUS1.81/10Item #108298 UPC 00044315975608
Tap to view
Product overview
Features double shear nailing that distributes the load through 2 points on each joist nail for greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection. Do not bend or removed tabs. Galvanized for extra corrosion resistance.
- Double shear nailing
- Use common nails
- 1-3/4 In. x 9-1/2 In. x 14 In.
- Galvanized
Specifications
| Material | Steel |
| Type | Double Shear |
| Finish | Galvanized |
| Gauge | 16 |
| Install With | 30-16d header, 10-16d joist |
| Joist Size | 1-3/4 In. x 9-1/2 In. x 14 In. |
| Width (In.) | 1.8125 |
| Height (In.) | 8.875 |
| Base (In.) | 3 |
| Brand | Simpson Strong-Tie |
| UPC | 00044315975608 |
| Product type | Joist Hanger |
