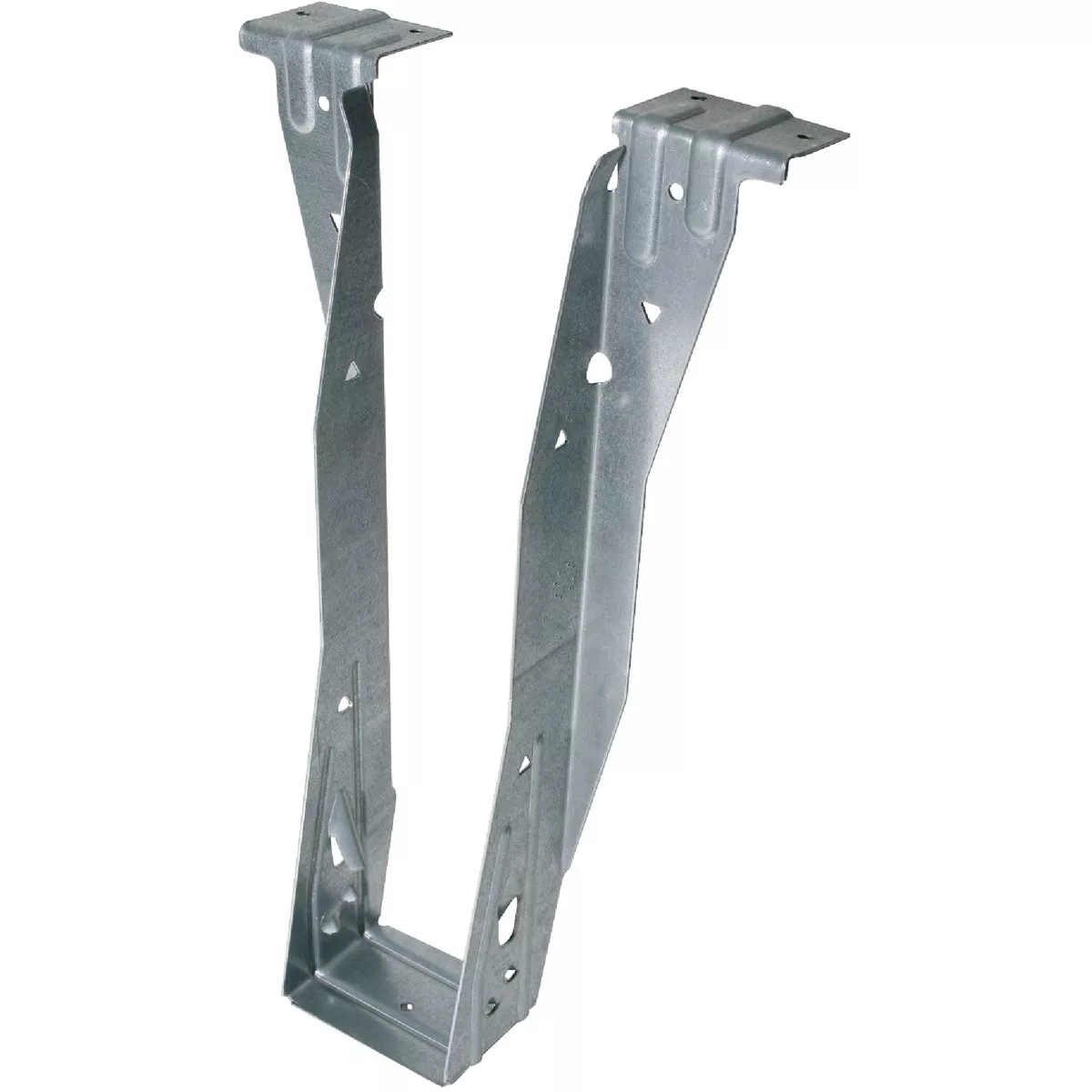

Simpson Strong-Tie 2-7/16 In. x 9-7/16 In. Galvanized Top Flange I-Joist Hanger
Model #ITS2.37/9.5Item #106156 UPC 00707392742906
Tap to view
Product overview
The innovative ITS sets a new standard for engineered wood top flange hangers. The ITS installs faster and uses fewer nails than any other EWP top flange hanger. The new Strong-Grip seat and Funnel Flange features allow standard joist installation without requiring joist nails, resulting in the lowest installed cost. The Strong-Grip seat firmly secures I-joists with flange thicknesses from 1-1/8" to 1-1/2". The ITS design maintains superior allowable download capacities equal to or greater than the ITT for Douglas Fir and all SCL headers. 18-gauge galvanized steel.
- Top flange hanger
- 2-5/16 In. x 9-1/2 In.
- Galvanized
Specifications
| Material | Steel |
| Type | Top Flange |
| Finish | Galvanized |
| Gauge | 18 |
| Install With | 4-10d top, 2-10d face, 4-10d joist |
| Joist Size | 2-5/16 In. x 9-1/2 In. |
| Width (In.) | 2.4375 |
| Height (In.) | 9.4375 |
| Base (In.) | 2 |
| Brand | Simpson Strong-Tie |
| UPC | 00707392742906 |
| Product type | Joist Hanger |
