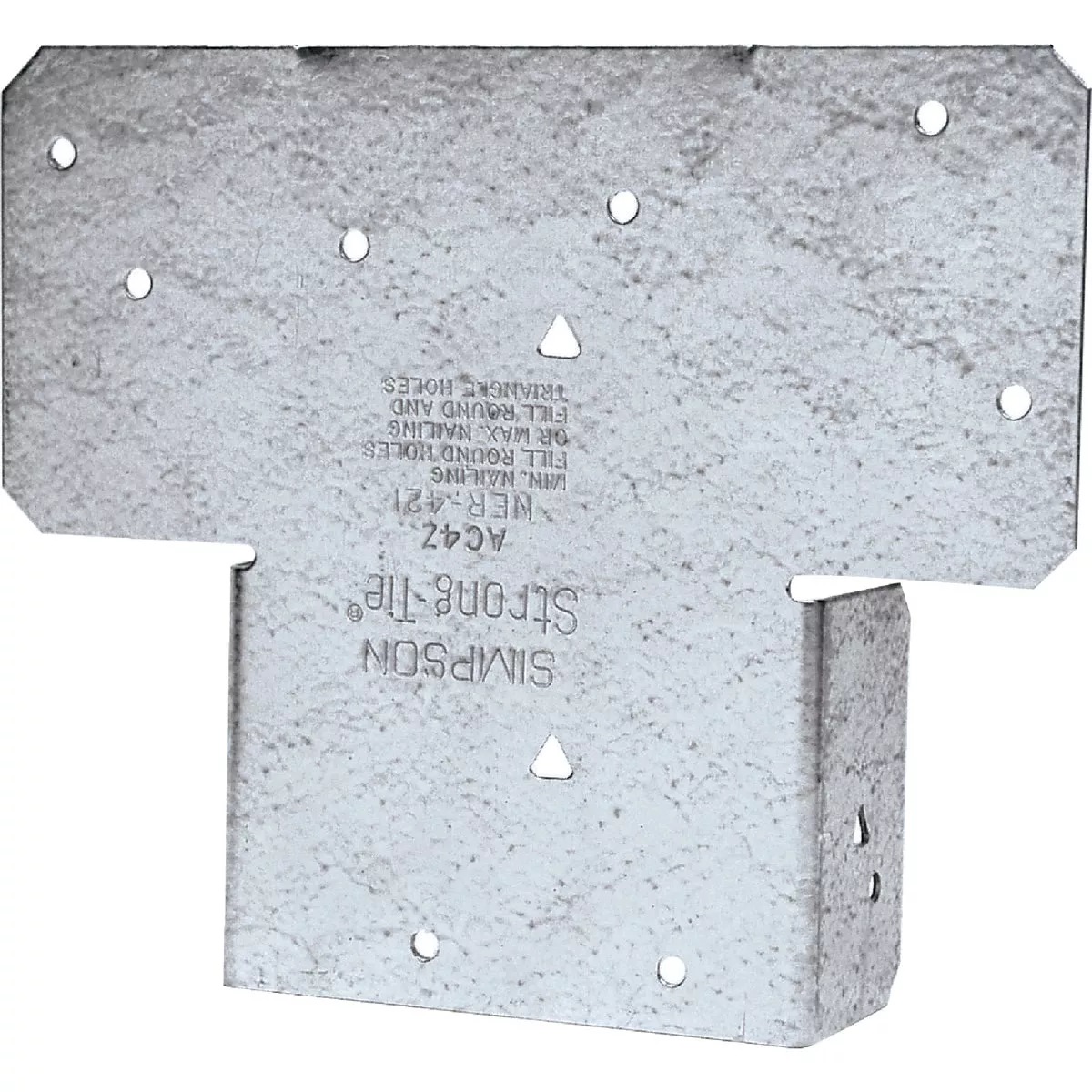

Simpson Strong-Tie ZMAX 4 In. x 4 In. 18 ga Post Cap
Model #AC4ZItem #105740 UPC 00044315337208
Tap to view
Product overview
These connectors are always installed in pairs and connect 4x or 6x wood members at right angles. Eliminates driving nails into end grain. Nails can be added in the triangle holes to increase uplift load capacity. 18-gauge galvanized steel. Some sizes available with ZMAX coating.
- Install in pairs
- 4 In. x 4 In.
- Z-Max
Specifications
| Material | Steel |
| Type | Post |
| Finish | Z-Max |
| Size | 4 In. x 4 In. |
| Gauge | 18 ga |
| Install With | 12-16d HDG fastner beam & 8-16d HDG post |
| Dimensions | 3-9/16 W x 6-1/2 L |
| Brand | Simpson Strong-Tie |
| UPC | 00044315337208 |
| Product type | Post Cap |
