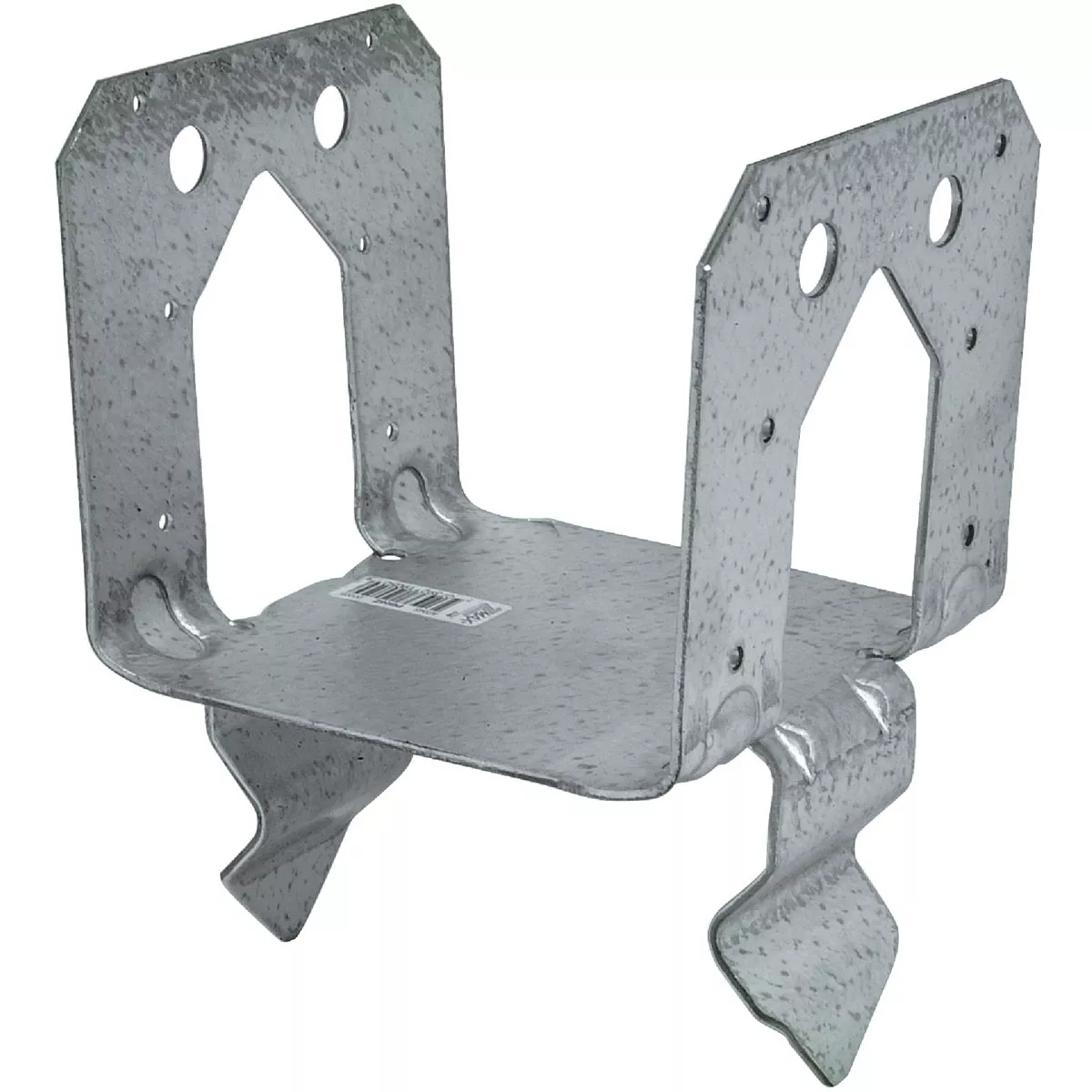

Simpson Strong-Tie ZMAX 6 In. x 6 In. 12 ga Post Base
Model #PB66ZItem #101856 UPC 00707392190509
Tap to view
Product overview
The PB base embeds in wet concrete after pour and is made to install flush with the concrete surface. This connector was designed to help resist upload forces. Holes are provided for installation with 16d commons. A 2" minimum side cover is required to obtain the full load. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or carports). 12-gauge galvanized steel. Some sizes available with ZMAX coating.
- Install flush with concrete surface
- 6 In. x 6 In.
- Z-Max
Specifications
| Material | Steel |
| Type | PB Base |
| Size | 6 In. x 6 In. |
| Gauge | 12 ga |
| Brand | Simpson Strong-Tie |
| UPC | 00707392190509 |
| Product type | Post Base |
